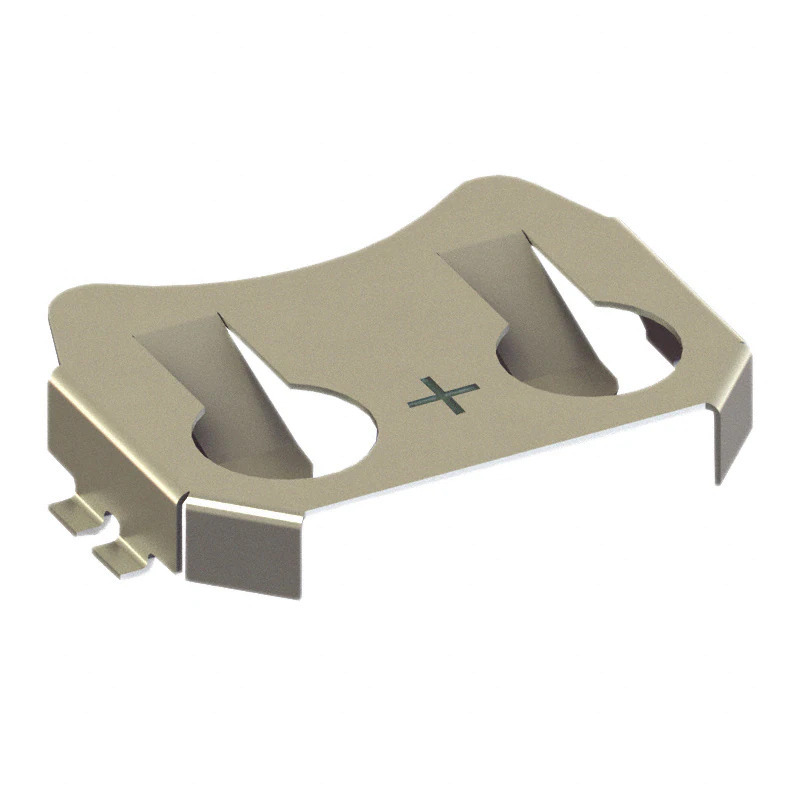

3034TR Keystone Electronics
Same model may have multiple batches, images only for reference.

3034TR

Part No 3034TR
Manufacturer Keystone Electronics
Catalog Battery Holders, Clips, Contacts
Description BATT RETAINER COIN 20MM 1CEL SMD
Datasheet
3034TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Series -
Package Tape & Reel
Product Status Active
Battery Type, Function Coin Cell, Retainer
Style Retainer
Battery Cell Size Coin, 20.0mm
Number of Cells 1
Battery Series 2020, 2025, 2032
Mounting Type PCB, Surface Mount
Termination Style SMD (SMT) Tab
Height Above Board 0.160" (4.06mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365979-3034TR
Ultra Librarian 3D Model Ultra Librarian 3034TR CAD Model

Description

The 3034TR is a battery holder, clip, and contact in a tape and reel package from Keystone Electronics.

  • Product Category: Battery Products - Battery Holders, Clips, Contacts
  • Product Status: Active
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Mounting Type: Surface Mount
  • Style: Retainer
  • Termination: SMD (SMT) Tab
  • Battery Size: 20.0mm (2020, 2025, 2032)
