S8201-46R Harwin Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

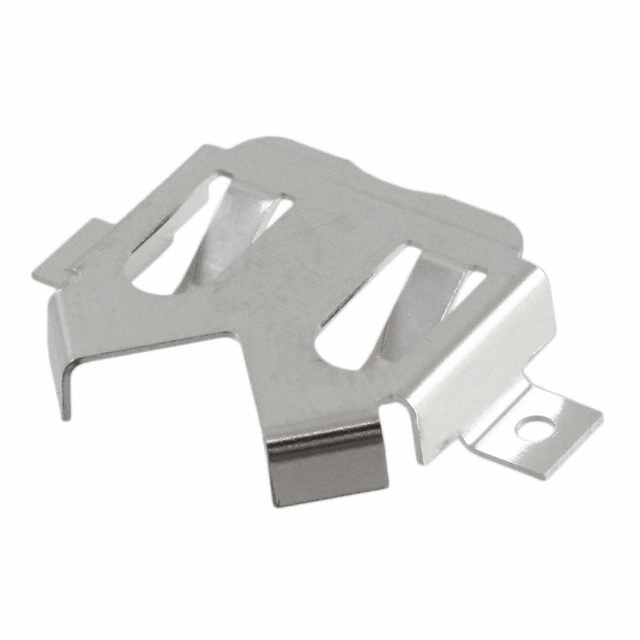

S8201-46R

Part No S8201-46R
Manufacturer Harwin Inc.
Catalog Battery Holders, Clips, Contacts
Description BATTERY RETAINER COIN 12.5MM SMD
Datasheet
S8201-46R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
Battery Type, Function Coin Cell, Retainer
Style Retainer
Battery Cell Size Coin, 12.5mm
Number of Cells 1
Battery Series 1225
Mounting Type PCB, Surface Mount
Termination Style SMD (SMT) Tab
Height Above Board 0.126" (3.20mm)
Operating Temperature -40°C ~ 105°C
Ultra Librarian 3D Model Ultra Librarian S8201-46R CAD Model
