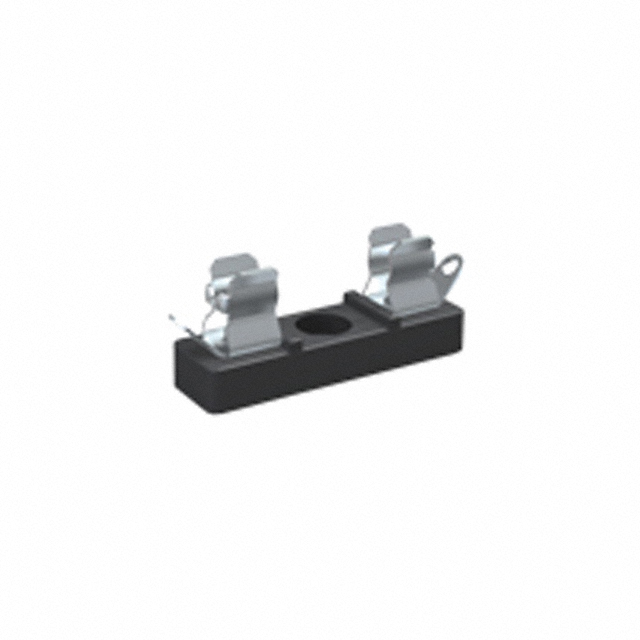

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting Type Chassis Mount
Fuse Size 0.25" Dia x 1.26" L (6.35mm x 32mm)
Current Rating (Amps) 15 A
For Use With/Related Products 3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Type Cartridge
Fuseholder Type Block
Number of Circuits 1
Voltage 250V
Termination Style Solder Lug
Contact Material Brass
Contact Finish Nickel
Approval Agency UL
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1602312-3523
Ultra Librarian 3D Model Ultra Librarian 3523 CAD Model
