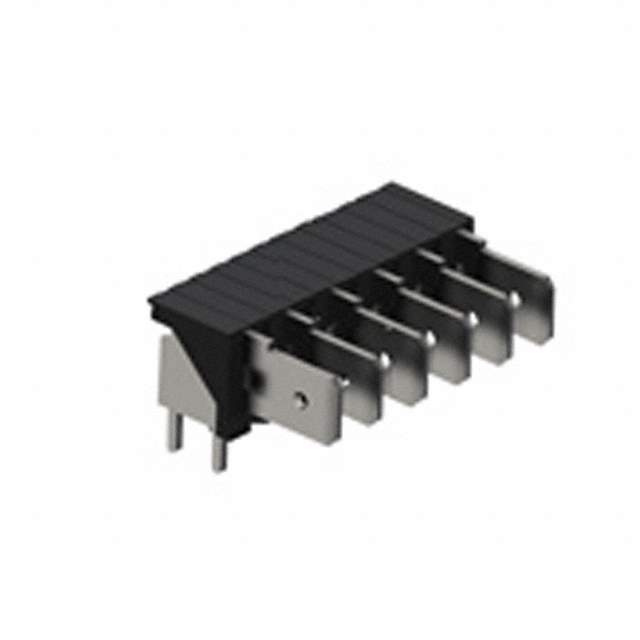

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr Keystone Electronics
Package Bulk
Product Status Active
Terminal Type Header
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.307" (7.80mm)
Termination Solder
Insulation Non-Mating End Insulated
Mounting Type Through Hole, Right Angle
Features 6 Tabs
Color Black
Contact Material Brass
Contact Finish Tin
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 850706-7806
Ultra Librarian 3D Model Ultra Librarian 7806 CAD Model

Description

The 850706-7806 is a male quick disconnect connector designed for easy and efficient electrical connections manufactured by Keystone Electronics.

  • Tabs: 6
  • Termination: Solder
  • Contact Finish: Tin
  • Quantity: 1 piece
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation: Non-Mating End
  • Mounting Type: Through Hole, Right Angle
