Same model may have multiple batches, images only for reference.

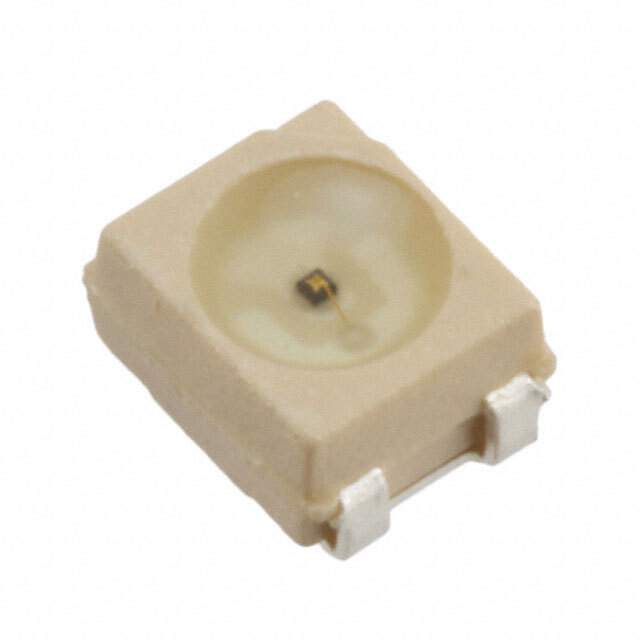

AA3528AF3C Real Image
Same model may have multiple batches, images only for reference.

AA3528AF3C

Part No AA3528AF3C
Manufacturer Kingbright
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 50MA PLCC
Datasheet
AA3528AF3C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Features Infrared (IR) Emitter 940nm 1.2V 50mA 1.6mW/sr @ 20mA 120° 4-PLCC
Manufacturer Kingbright
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 4-PLCC
Family Name AA3528
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number 754-1395-6, 754-1395-2, 754-1395-1
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 909099-AA3528AF3C
Ultra Librarian 3D Model Ultra Librarian AA3528AF3C CAD Model

Description

The Kingbright 909099-AA3528AF3C is an infrared (IR) emitter component that has a wavelength of 940nm. It has a forward voltage (Vf) of 1.2V and a current of 50mA.

  • Type: Infrared (IR) Emitter
  • Wavelength: 940nm
  • Forward Voltage (Vf): 1.2V
  • Current: 50mA
  • Mounting: SMD
  • Viewing Angle: 120 degrees
  • Millicandela Rating: 1.6mW/sr @ 20mA
  • Popularity: High
  • Supply and Demand: Balanced
