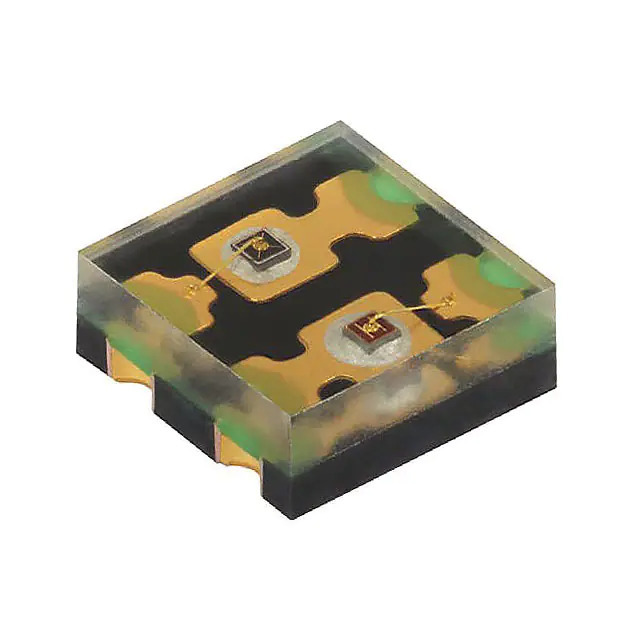

Same model may have multiple batches, images only for reference.
VSMD66694 Vishay
Same model may have multiple batches, images only for reference.

VSMD66694

Part No VSMD66694
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM, 660NM 70MA SMD
Datasheet
VSMD66694 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Vishay Semiconductor Opto Division
Series -
Package Tape & Reel
Product Status Active
Type Infrared (IR), Visible
Current - DC Forward (If) (Max) 70mA
Radiant Intensity (Ie) Min @ If -
Wavelength 940nm, 660nm
Voltage - Forward (Vf) (Typ) 1.4V, 2V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Base Product Number MD66694
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371982-VSMD66694
Ultra Librarian 3D Model Ultra Librarian VSMD66694 CAD Model

Description

The Vishay Semiconductor Opto Division MD66694 is an infrared (IR) and visible LED emitter.

  • Temperature Range: -25°C to 85°C
  • Voltage Forward (Vf) IR: 1.4V
  • Voltage Forward (Vf) Visible: 2V
  • Package Type: 2-SMD, no lead
  • Mounting Type: Surface Mount
  • Viewing Angle: 120°
  • Current Forward (If): 70mA
  • Wavelength IR: 940nm
  • Wavelength Visible: 660nm
  • Product Status: Active
  • REACH Status: REACH unaffected
  • ECCN: EAR99
