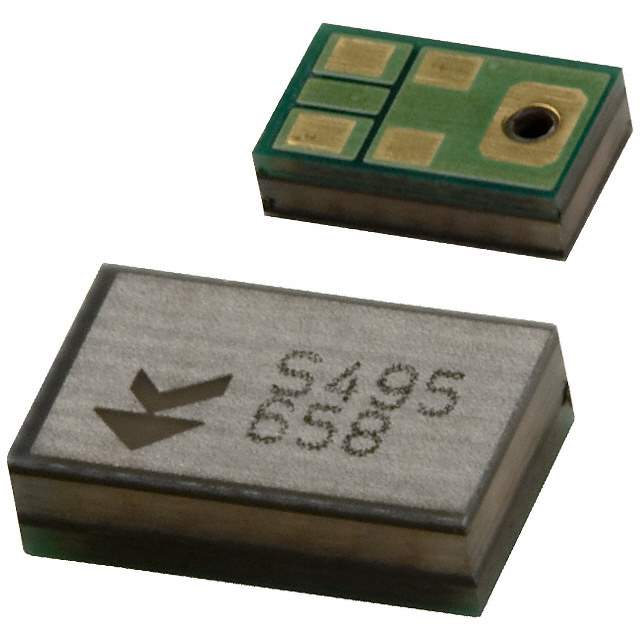

SP0102BE3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Audio Products
Manufacturer Knowles
Packaging Cut Reel
Status Obsolete(EOL)
Type MEMS (Silicon)
Output Type Analog
Direction Omnidirectional
Frequency Range 100Hz to 10kHz
Sensitivity -42dB ±4dB @ 94dB SPL
S/N Ratio 59dB
Impedance 100 Ohm
Voltage Range 1.5 to 5.5V
Operating Supply Current 250μA
Port Location Top
Termination Surface Mount
Height (Max) 0.065" (1.65mm)
Shape Rectangular
Win Source Part Number 211976-SP0102BE3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SP0102BE3 CAD Model

Description

The Knowles SP0102BE3 is a MEMS (Micro-Electro-Mechanical System) silicon microphone that has a frequency range of 100Hz to 10kHz.

  • Output Type: The microphone has an analog output type
  • Direction: and has an omnidirectional direction.
  • Sensitivity: The microphone has a sensitivity of -42dB ±4dB @ 94dB SPL
  • Signal-to-Noise Ratio: and has a signal-to-noise ratio of 59dB.
  • Voltage Range: The microphone has a voltage range of 1.5 to 5.5V
  • Port Location: and has a port location at the top.
  • Packaging: The microphone is supplied in a cut reel packaging and has a height of 0.065" (1.65mm).
  • Category: The microphone is categorized under audio products and is obsolete (EOL).
  • Supply/Demand: The supply and demand status of the microphone is limited.
