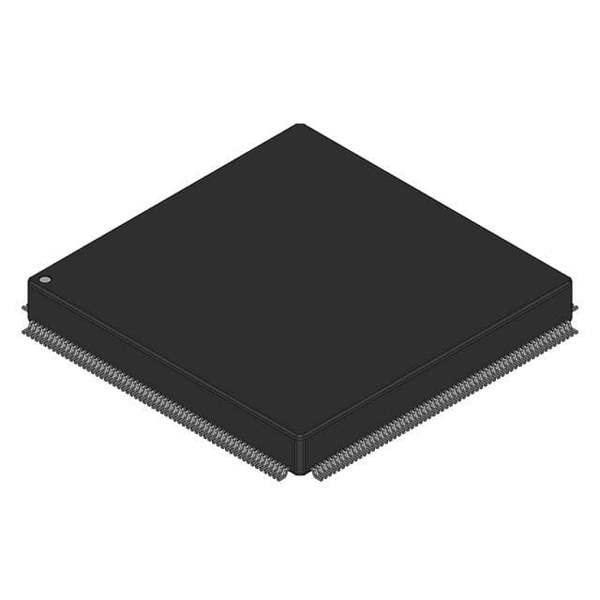

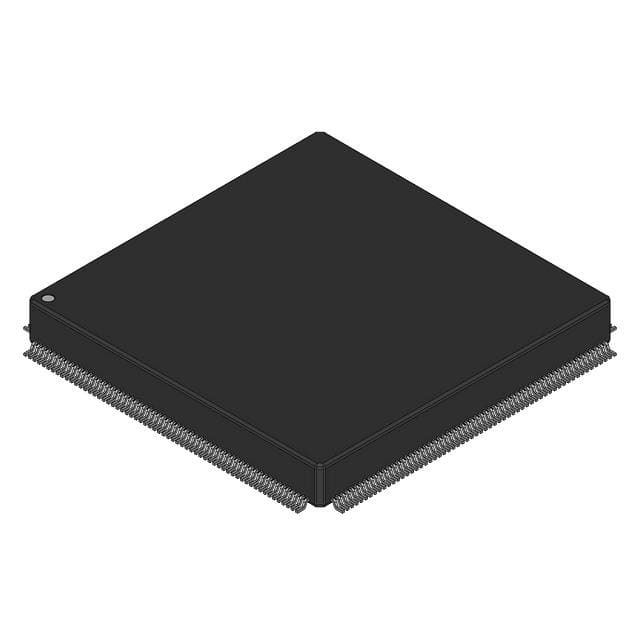

OR3T556PS240-DB Lattice Semiconductor Corporation
Same model may have multiple batches, images only for reference.

OR3T556PS240-DB

Part No OR3T556PS240-DB
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description FIELD PROGRAMMABLE GATE ARRAY / ORCA?3C Field Programmable Gate Array (FPGA) IC 192 43008 2592 240-BFQFP Exposed Pad
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Lattice Semiconductor Corporation
Series ORCA™3C
Package Bulk
Product Status Active
Programmable Not Verified
Number of Logic Elements/Cells 2592
Total RAM Bits 43008
Number of I/O 192
Number of Gates 80000
Voltage - Supply 3V ~ 3.6V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 70°C (TA)
Package / Case 240-BFQFP Exposed Pad
Supplier Device Package 240-SQFP2 (32x32)
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1031226-OR3T556PS240-DB
Ultra Librarian 3D Model Ultra Librarian OR3T556PS240-DB CAD Model

Description

The ORCA™3C is a series of field-programmable gate arrays (FPGAs) designed by Lattice Semiconductor Corporation.

  • Series: ORCA™3C
  • I/Os: 192
  • Logic Elements/Cells: 2592
  • Total RAM: 43008 bits
  • Gates: 80000
  • Operating Voltage Range: 3V to 3.6V
  • Package: 240-BFQFP Exposed Pad
  • Mounting Type: Surface Mount
  • Temperature Range: 0°C to 70°C
  • Product Status: Active
