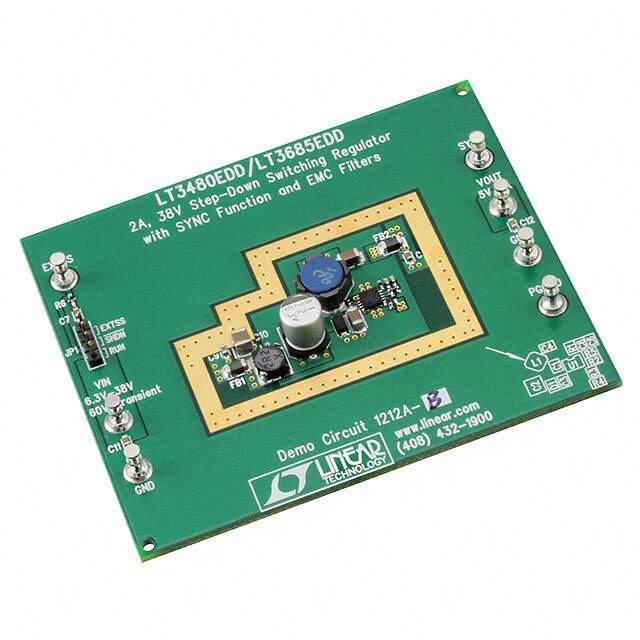

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Linear Technology
Part Status Obsolete(EOL)
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 5V
Output Current 2A
Voltage - Input 6.3 V ~ 38 V
Regulator Topology Buck
Frequency - Switching 800kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part LT3685
Win Source Part Number 781202-DC1212A-B
Popularity Medium
Supply and Demand Status Balance
Family Name DC1212A-B
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian DC1212A-B CAD Model

Description

The DC1212A-B from Linear Technology is a high-performance, demonstration board designed for rigorous industrial and communication applications. It showcases the capabilities of the LTM®4620A, a dual 13A or single 26A µModule® (micromodule) regulator, which is known for its high efficiency, precision, and ease of use.

Key Features

  • Dual Output: The board can deliver two 13A outputs or can be configured to provide a single 26A output, offering flexibility for different power requirements.
  • Wide Input Voltage Range: The module operates from a 4.5V to 16V input supply, making it suitable for a variety of sources and ensuring compatibility with diverse systems.
  • High Efficiency: The LTM4620A features high-efficiency performance, minimizing power loss and heat generation, which is crucial for maintaining system reliability.
  • Compact Design: With its micromodule design, the DC1212A-B provides a compact power solution that is easy to use in space-constrained applications.
  • Advanced Thermal Design: The board is designed with thermal performance in mind, featuring a heat sink and airflow through the inductor to keep the module cool under load.

Applications

The DC1212A-B is well-suited for a range of applications, including:

  • Telecommunications infrastructure
  • Industrial equipment
  • Datacom and storage systems
  • Medical devices
  • High-density distributed power systems

Performance and Quality

Linear Technology ensures that the DC1212A-B is manufactured to the highest standards, offering reliable and consistent performance. The board is designed for easy evaluation, enabling designers to quickly integrate the LTM4620A into their power systems with minimal effort.

Support and Resources

Comprehensive technical documentation, application notes, and support are available to assist in the implementation and optimization of the DC1212A-B in your power management system.
