The TPS40055EVM-002 is a fully assembled and tested circuit for evaluating the TPS40055 Wide Input Synchronous Buck Controller from Texas Instruments. This high-performance tool is designed to provide an adjustable output voltage ranging from 0.7V to 5.5V, with an input voltage range of 4.5V to 40V. The evaluation module is capable of delivering up to 10A of output current, making it suitable for a wide range of power supply applications.

Key Features

• Wide input voltage range: 4.5V to 40V
• Adjustable output voltage: 0.7V to 5.5V
• High output current capability: Up to 10A
• High efficiency synchronous buck design
• Integrated MOSFET drivers for reduced external components
• Fixed-frequency voltage mode control for predictable operation
• Overcurrent and overvoltage protection for enhanced safety
• Compact size for easy integration into a variety of systems

Applications

The TPS40055EVM-002 is ideal for a range of applications, including:

• Telecommunications infrastructure
• Networking equipment
• Industrial systems
• Point of load power supplies
• Other electronic devices requiring efficient power conversion

Design and Layout

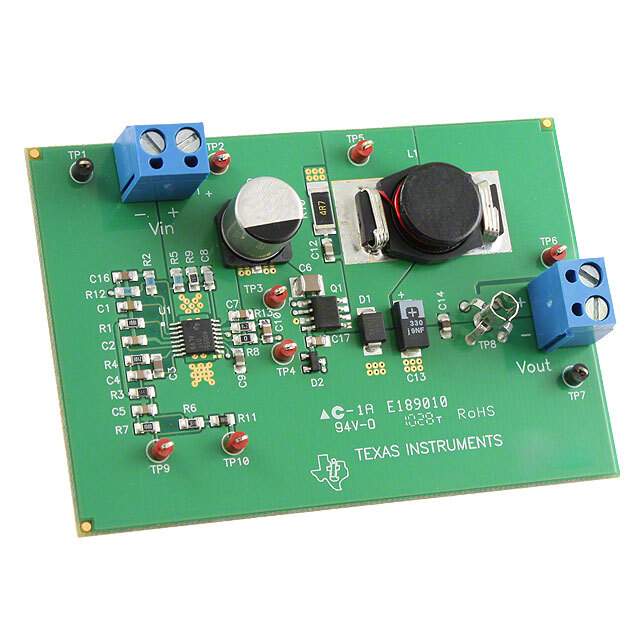

The EVM features a compact and optimized layout, showcasing the capabilities of the TPS40055 controller in a real-world scenario. The layout is engineered to minimize noise and enhance performance, ensuring reliable operation even in demanding conditions. With all essential components and test points readily accessible, the TPS40055EVM-002 serves as an excellent platform for quick and effective evaluation.

Getting Started

To begin using the TPS40055EVM-002, simply apply the appropriate input voltage, set the desired output voltage, and connect the load. The evaluation module comes with comprehensive documentation, including a user guide and schematic, to assist users in configuring and operating the module effectively.

For more information or to purchase the TPS40055EVM-002, please visit the Texas Instruments website or contact your local Texas Instruments sales representative.
