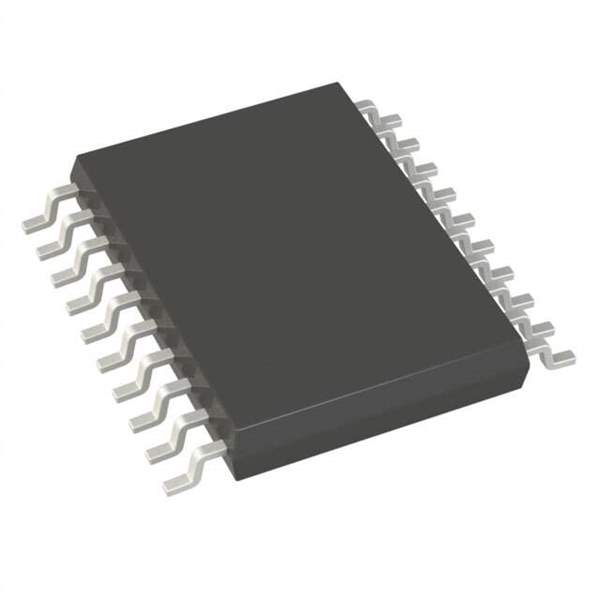

Products specifications

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Amplifier Type Current Feedback
Number of Circuits 2
Slew Rate 900 V/μs
-3db Bandwidth 65MHz
Current - Input Bias 10μA
Voltage - Input Offset 3mV
Operating Supply Current 29mA
Channel Output Current 1A
Supply Voltage - Operating ±5 V to 15 V
Temperature Range - Operating 0°C to 70°C
Mounting SMD (SMT)
Case / Package 20-TSSOP-EP
Win Source Part Number 1058779-LT1795CFE#PBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LT1795CFE#PBF CAD Model

Description

Product Overview: LT1795CFE#PBF

The LT1795CFE#PBF is a high-performance operational amplifier (op-amp) from Linear Technology, designed to cater to a wide array of applications requiring precision, speed, and reliability. This op-amp is well-suited for industrial, automotive, and communication systems, where it can be utilized in signal conditioning, active filters, and data acquisition systems.

Key Features

  • High Frequency Performance: The LT1795CFE#PBF boasts a high slew rate and bandwidth, making it ideal for high-speed applications.
  • Low Distortion: It offers low harmonic distortion, which is critical for audio applications and high-fidelity signal processing.
  • Single Supply Operation: This op-amp can operate from a single supply, simplifying power supply design and broadening its compatibility with various systems.
  • Robust Output Drive: Capable of driving capacitive loads, it is versatile for use in a range of output configurations.
  • Thermal and Overcurrent Protection: Built-in protection mechanisms ensure the longevity and stable operation of the op-amp under adverse conditions.

Electrical Characteristics

The LT1795CFE#PBF operates within a supply voltage range that accommodates various industrial and automotive standards. It features a low input bias current and a low offset voltage, which are crucial for precision applications. The device's temperature range is designed to meet the demands of challenging environments.

Package and Quality

The LT1795CFE#PBF comes in a TSSOP package, which is compact and suitable for space-constrained applications. The package is lead-free and RoHS compliant, aligning with environmental standards and regulations. Linear Technology ensures that this product meets high-quality standards, with rigorous testing and quality control procedures in place.

Applications

  • Active Filters
  • Signal Conditioning
  • Data Acquisition Systems
  • Audio Processing
  • Test Equipment

In conclusion, the LT1795CFE#PBF from Linear Technology is a versatile, high-performance operational amplifier that offers designers a reliable solution for a wide range of demanding applications.
