Overview of Linear Technology's LT3511IMS#TRPBF

The LT3511IMS#TRPBF is a high-performance, isolated flyback converter from Linear Technology, a leader in the design and manufacture of high-performance analog integrated circuits. This advanced power management IC is specifically engineered to provide efficient and reliable solutions for isolated power supply applications.

Key Features

• Wide Input Voltage Range: The device operates over a wide input voltage range of 4.5V to 100V, making it versatile for various applications, from automotive to industrial control systems.
• Integrated Transformer Driver: It includes an integrated 420mA, 150V power switch, which simplifies the design and reduces external component count.
• No Opto-Isolator Required: The LT3511IMS#TRPBF utilizes boundary mode operation, which eliminates the need for an opto-isolator for regulation.
• High Efficiency: Its high level of integration and boundary mode operation contribute to a high efficiency, which is essential for reducing heat and improving reliability in end applications.
• Programmable Soft-Start: The soft-start function can be programmed with an external capacitor, which reduces the stress on the input power source during startup.
• Thermal Protection: The device features over-temperature protection that helps prevent damage from overheating, enhancing the product's longevity and safety.

Applications

The LT3511IMS#TRPBF is designed for a wide range of applications, including but not limited to:

• Isolated Industrial Power Supplies
• Telecom Power Supplies
• Automotive Power Supplies
• Medical Equipment
• Power Over Ethernet (PoE) Applications

Package and Reliability

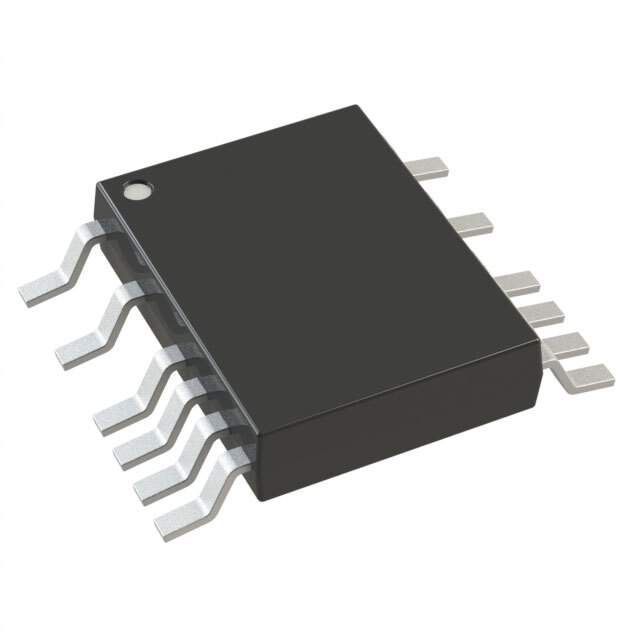

The device is offered in a compact 16-lead MSOP package with four leads removed for enhanced high voltage pin spacing. This package is ideal for space-constrained applications. Additionally, the LT3511IMS#TRPBF is designed to meet Linear Technology's rigorous standards for reliability and performance, ensuring a high-quality solution for critical power management needs.

With its robust feature set and flexible design, the LT3511IMS#TRPBF from Linear Technology stands out as an exceptional choice for designers seeking a reliable and efficient isolated flyback converter.
