Product Overview: LT3592IMSE from Linear Technology

The LT3592IMSE is a highly versatile and efficient integrated circuit designed by Linear Technology, now part of Analog Devices, for driving LEDs. This compact, monolithic device is specifically tailored for LED applications that require constant-current and constant-voltage regulation, making it an ideal choice for portable, automotive, and industrial lighting solutions.

Key Features

• Adjustable Output Voltage: The LT3592IMSE offers an adjustable output voltage up to 44V, which allows it to drive multiple LEDs in series, ensuring uniform brightness and improved efficiency.
• Wide Input Voltage Range: With an input voltage range of 3V to 30V, this driver is compatible with a variety of power sources, from single-cell Li-Ion batteries to automotive power systems.
• Internal Switch: It includes a 45V, 1.1A internal switch, which provides a compact solution with minimal external components, reducing the overall design footprint.
• High Efficiency: The LT3592IMSE operates with high efficiency, which is crucial for battery-powered applications where power conservation is key.
• Dimming Control: It features true color PWM dimming, which allows for precise control over LED brightness with minimal color shift, enhancing the user experience in display backlighting applications.

Applications

The LT3592IMSE is suitable for a wide range of applications, including:

• Portable Lighting
• Automotive and Avionic Lighting
• Industrial and Architectural Lighting
• LED Backlighting for LCD Displays

Package and Reliability

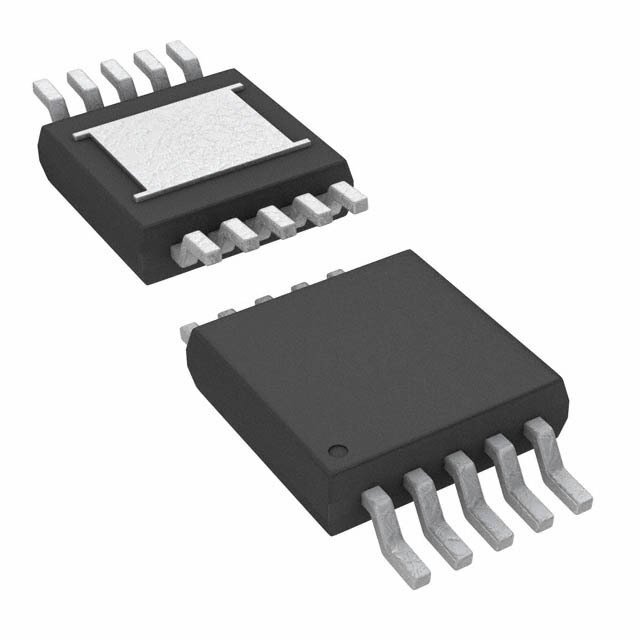

This LED driver is offered in a compact 10-lead MSOP package with an exposed pad for enhanced thermal performance. The LT3592IMSE is rated for operation over a junction temperature range of −40°C to +125°C, ensuring reliable performance in a wide range of environmental conditions.

Conclusion

The LT3592IMSE by Linear Technology is a powerful, efficient, and flexible solution for LED driving requirements. Its combination of features, such as adjustable output voltage, wide input range, internal switch, high efficiency, and true color PWM dimming, make it a go-to choice for designers looking to optimize their LED lighting systems across various applications.
