LT8612EUDE#PBF - High-Efficiency, Synchronous Step-Down Regulator

The LT8612EUDE#PBF is a compact, high-efficiency, synchronous monolithic step-down switching regulator designed by Linear Technology. This advanced component is engineered to deliver a continuous output current of up to 2.5A to a load with high efficiency, low ripple, and excellent line and load regulation. The device's wide input voltage range of 3.4V to 42V makes it suitable for a variety of applications including automotive, industrial, and telecommunications power systems.

One of the key features of the LT8612EUDE#PBF is its SYNC pin, which allows synchronization to an external clock, eliminating noise in sensitive frequency bands. The regulator's internal top and bottom high-efficiency power switches are included to deliver efficiencies as high as 96%. Additionally, a unique feature of the LT8612 is its Burst Mode operation, which maintains high efficiency at low output currents while keeping the output ripple below 10mVP-P.

The LT8612EUDE#PBF also incorporates a fast minimum on-time of only 45ns, enabling large step-down ratios at high switching frequency, which results in a smaller overall solution size. Furthermore, the device's adjustable switching frequency can be programmed from 200kHz to 3MHz, allowing designers to optimize efficiency while avoiding critical noise-sensitive frequency bands.

Other features include an internal soft-start to limit inrush current during startup, thermal protection, and a power good flag that indicates when the output voltage is within regulation. The LT8612EUDE#PBF also provides for safe operation by including overvoltage protection and current limiting to protect the regulator and the load during an overcurrent condition.

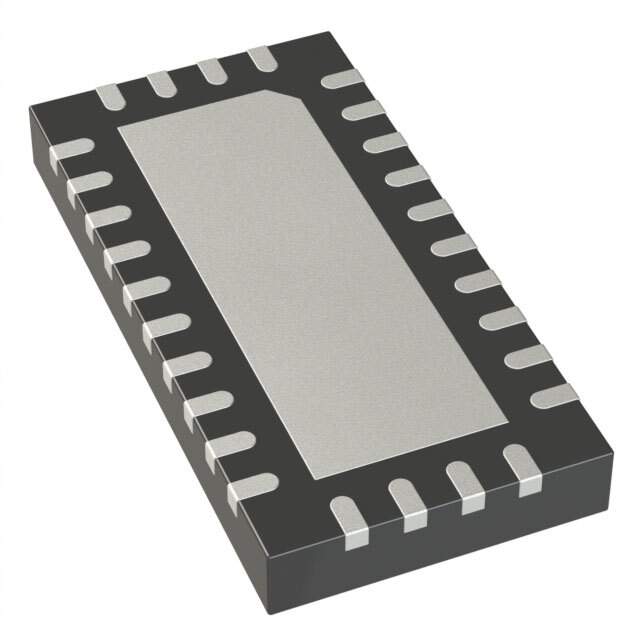

Encased in a 24-lead QFN package, the LT8612EUDE#PBF is designed for a compact footprint and minimal external components, making it an ideal choice for space-constrained applications. Its robust design and versatile feature set ensure reliable performance in a wide range of demanding environments.

With its combination of high efficiency, flexible features, and compact design, the LT8612EUDE#PBF from Linear Technology stands out as a superior choice for designers looking to optimize their power supply solutions.
