LTC3219EUD - Mainstay LED Driver from Linear Technology

The LTC3219EUD is an innovative LED driver integrated circuit (IC) from Linear Technology, designed to provide a compact and efficient solution for portable device illumination applications. This chip is ideal for products that require uniform backlighting or multicolor LED driving, such as mobile phones, digital cameras, and other handheld devices.

At the heart of the LTC3219EUD's functionality is its capacity to drive up to nine LED channels with a total output current of up to 155mA. Its internal 2.7V to 5.5V input voltage range makes it compatible with a variety of power sources, including single-cell lithium-ion batteries. This versatility is further enhanced by its ability to maintain constant LED current, ensuring consistent brightness even when the input voltage fluctuates.

The LTC3219EUD boasts an impressive 1MHz fixed-frequency switching regulator, which allows for small external components, thereby reducing the overall footprint on the PCB. Additionally, the chip features an integrated Schottky diode, further minimizing the number of external components required and simplifying the design process.

One of the standout features of the LTC3219EUD is its I²C-compatible interface, which provides a convenient means of controlling LED dimming. This interface allows for precise adjustment of LED brightness levels, which can be set via an external resistor or programmed through the I²C bus, offering designers flexibility in user interface design.

Safety and protection are also key aspects of the LTC3219EUD design. The chip includes built-in open-LED and short-circuit protection, ensuring the longevity of the device it powers. Moreover, the thermal management features of the LTC3219EUD prevent overheating, safeguarding the IC during high-current operation.

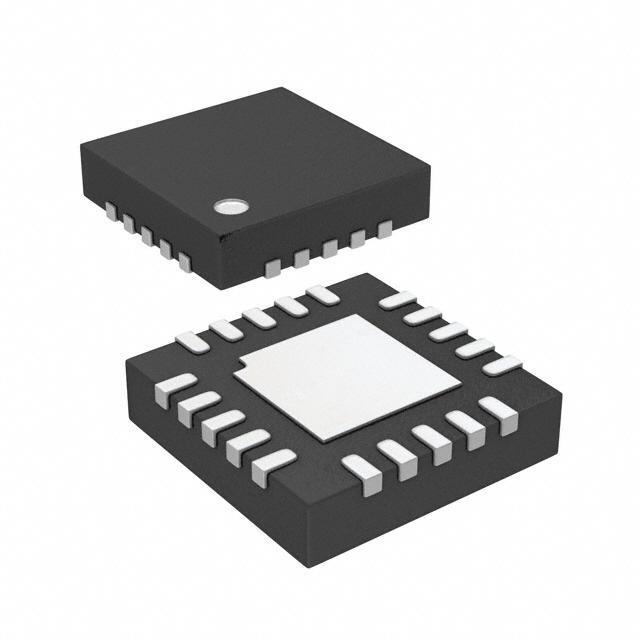

The LTC3219EUD is available in a compact, 3mm x 3mm, 20-lead QFN package, making it suitable for space-constrained applications. Its performance and small size make it an excellent choice for designers looking to add advanced LED driving capabilities to their portable device projects without compromising on space or power efficiency.

With its blend of power management, flexibility, and protection features, the LTC3219EUD from Linear Technology stands as a robust solution for modern LED driving requirements.
