Products specifications

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Applications Display (LED Drivers), Handheld/Mobile Devices, Power Supply
Operating Supply Current 16μA
Supply Voltage - Operating 2.7 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 44-QFN (4x7)
Win Source Part Number 072578-LTC3675EUFF#PBF
Ultra Librarian 3D Model Ultra Librarian LTC3675EUFF#PBF CAD Model

Description

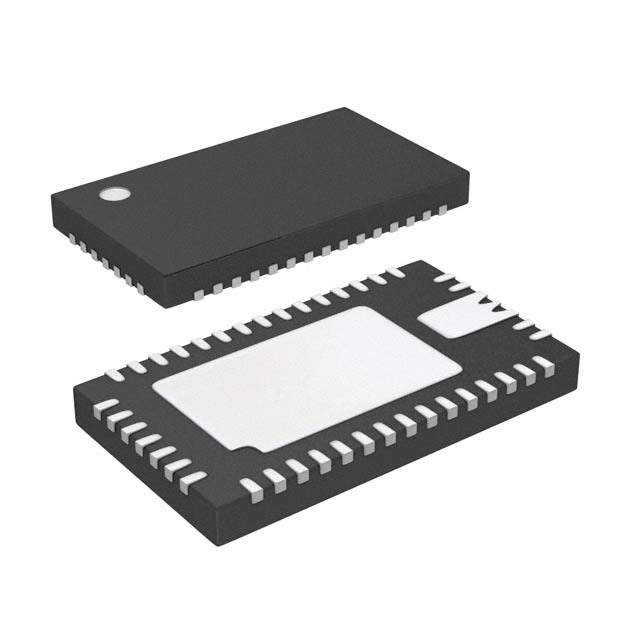

Linear Technology LTC3675EUFF#PBF Power Management IC

The LTC3675EUFF#PBF is a highly versatile power management integrated circuit (PMIC) designed by Linear Technology, now part of Analog Devices, to cater to the demanding needs of complex portable electronic systems. This multifunctional PMIC is an ideal solution for managing power requirements in applications such as handheld devices, industrial controls, and automotive systems, where efficiency, reliability, and a compact form factor are crucial.

At the heart of the LTC3675EUFF#PBF lies a comprehensive set of features aimed at providing a complete power management solution. It includes seven high-efficiency, synchronous step-down regulators and one always-on 25mA LDO, ensuring a wide range of output voltage options to power various subsystems. The step-down regulators are designed to operate over an input voltage range of 2.25V to 5.5V, making it suitable for single-cell Li-Ion/Polymer, or multi-cell alkaline/NiMH applications.

The PMIC is highly configurable, with selectable switching frequency and a range of programmable features accessible via an I²C interface. This allows for dynamic control of power sequences, output voltages, and operating modes, providing designers with the flexibility to optimize the power scheme for specific system requirements. The I²C interface also enables system diagnostics and reporting, which can be critical for maintaining system integrity and performance.

The LTC3675EUFF#PBF's compact 38-lead 5mm x 7mm QFN package minimizes the footprint on the PCB, a vital attribute for space-constrained applications. Additionally, its robust design includes internal soft-start to limit inrush current during startup and thermal protection to safeguard against overheating, ensuring reliable operation under a variety of conditions.

With its powerful combination of precision, configurability, and a compact size, the LTC3675EUFF#PBF stands out as a comprehensive power management solution. It offers designers the ability to streamline their power supply design with a single, efficient IC, reducing the complexity and component count of their systems while maintaining high performance and reliability.
