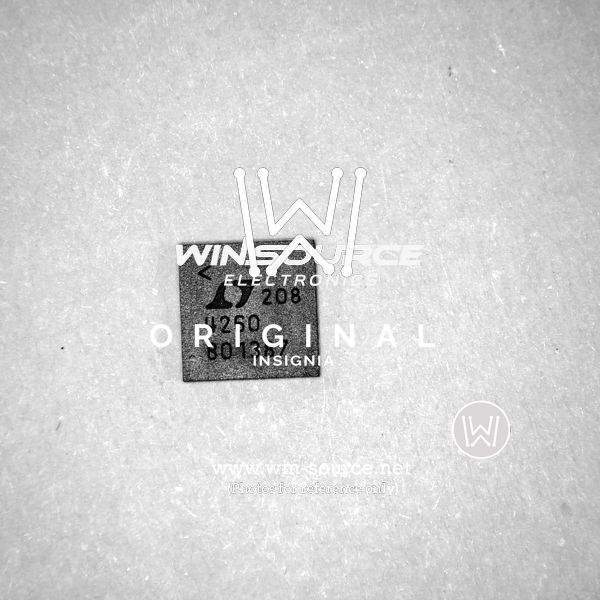

Linear Technology LTC4260CUH Hot Swap Controller

The LTC4260CUH is a sophisticated hot swap controller designed by Linear Technology to provide safe board insertion and removal from a live backplane. It is housed in a compact QFN-32 package, making it an excellent choice for space-constrained applications. This controller is particularly suitable for systems with a supply voltage range of 9V to 80V, ensuring versatility across various platforms and industries.

One of the key features of the LTC4260CUH is its integrated ADC (Analog-to-Digital Converter) and I2C compatible interface, which allows for real-time monitoring of current, voltage, and power. This enables system designers to implement intelligent power management strategies, as well as to provide diagnostic and fault reporting capabilities that can improve system reliability and performance.

The product also includes a programmable overcurrent limit and circuit breaker functionality. The overcurrent limit can be set via an external resistor, while the circuit breaker uses a programmable timer to determine fault conditions, ensuring protection against sustained overloads. Additionally, the LTC4260CUH offers an adjustable undervoltage/overvoltage lockout feature that guards the system against abnormal voltage conditions, thereby enhancing the overall safety of the application.

Fault protection is further reinforced by the automatic retry feature, which attempts to turn the power back on after a fault condition has been cleared. This minimizes system downtime and allows for a graceful recovery from transient faults without the need for manual intervention.

For thermal management, the LTC4260CUH includes an overtemperature protection circuit that shuts down the external MOSFET during excessive heat conditions, safeguarding both the controller and the system it is part of. The product also supports daisy-chaining of multiple devices for systems that require several hot swap channels, simplifying design and saving board space.

In summary, the LTC4260CUH from Linear Technology is a comprehensive hot swap controller solution that offers robust protection features, precise monitoring, and intelligent control for systems operating in a wide voltage range. Its compact form factor and advanced features make it an excellent choice for a variety of applications, including servers, network routers, and industrial systems.
