Introducing the LTC5530ES6 RF Detector by Linear Technology

The LTC5530ES6 is a precision RF (Radio Frequency) power detector encapsulated in a compact package, designed to cater to a broad spectrum of applications, including cellular, PCS, WCDMA, and WLAN systems. This high-performance component from Linear Technology is engineered for detecting signal power levels within the frequency range of 300MHz to 7GHz, which makes it versatile for use in various RF systems.

This RF power detector stands out with its ability to measure power levels from -34dBm to 6dBm with exceptional accuracy. The LTC5530ES6 is particularly noted for its fast response time and its capability to provide a linear output voltage that is directly proportional to the input power in dBm. This feature simplifies the design of RF power measurement and control systems, as it eliminates the need for complex calibration procedures.

The device operates from a single supply voltage ranging from 2.7V to 6V, making it suitable for battery-powered applications. It is also characterized by its low power consumption, which is crucial for portable and remote applications where power efficiency is a priority.

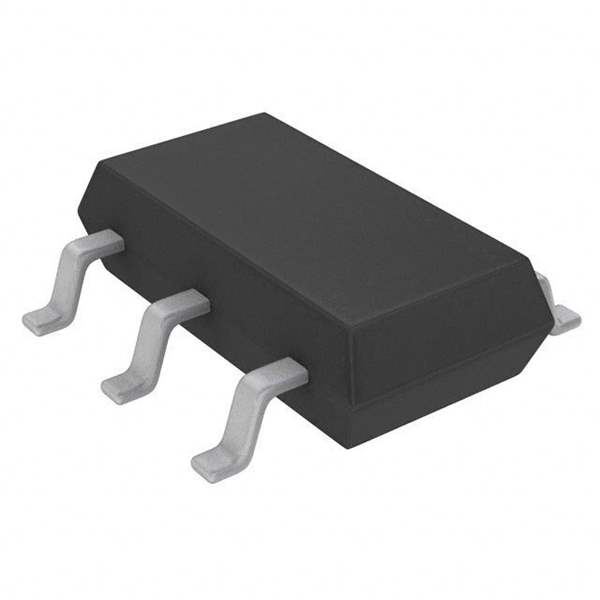

The LTC5530ES6 is available in a small 6-lead SOT-23 package, which is ideal for space-constrained applications. The compact form factor, combined with the minimal external component requirement, enables designers to create sleek and efficient designs without compromising on performance.

Additional features of the LTC5530ES6 include a temperature-compensated Schottky diode peak detector and an on-chip temperature-compensated logarithmic amplifier. These integrated components contribute to the device's robust performance across varying temperatures and operating conditions, ensuring reliable and consistent RF power detection in even the most demanding environments.

In summary, the LTC5530ES6 from Linear Technology is a sophisticated and reliable solution for RF power detection across a wide range of frequencies and applications. Its ease of integration, accuracy, and low power consumption make it an excellent choice for designers looking to enhance their RF system capabilities.
