The LTM2892CY-S#PBF is a high-performance isolated μModule transceiver from Linear Technology, designed to provide robust data communication in harsh electrical environments. This product is particularly ideal for applications requiring insulation between a data transmission element and a receiving element, effectively reducing system noise and protecting against large ground differences.

Key Features

• Isolation: The LTM2892CY-S#PBF offers 2500V<sub>RMS galvanic isolation, which is certified by UL and CSA standards, ensuring that the device can handle high voltage differentials without compromising performance or safety.
• Data Rate: It supports SPI data rates up to 20Mbps, making it suitable for high-speed communication requirements.
• Integrated Power: The device includes an integrated isolated DC/DC converter, which provides power for both the logic side and the isolated side, simplifying the design and reducing external component requirements.
• Robustness: Enhanced ESD protection is built-in, ensuring the device can withstand common electrostatic discharges, enhancing its durability and reliability in industrial environments.
• Temperature Range: It operates over a wide temperature range from -40°C to 105°C, accommodating extreme environmental conditions.

Applications

The LTM2892CY-S#PBF is versatile and can be used in a variety of applications, including:

• Industrial control systems
• Test and measurement equipment
• Medical equipment with stringent isolation requirements
• Automotive systems
• Power supply control and monitoring

Package and Quality

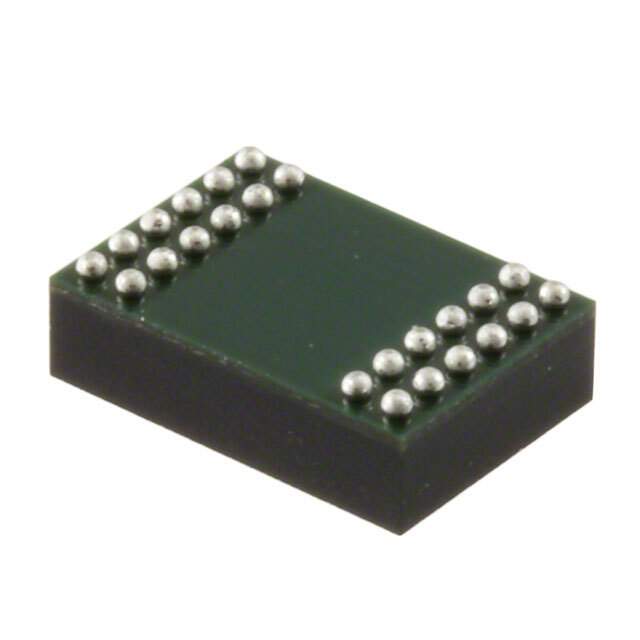

The device is packaged in a compact, surface-mount LGA package that is RoHS compliant. The LTM2892CY-S#PBF is manufactured by Linear Technology with a commitment to high quality and reliability, making it a trusted choice for critical applications where failure is not an option.

Conclusion

In conclusion, the LTM2892CY-S#PBF isolated μModule transceiver stands out for its high isolation capability, integrated power features, and robust data transfer rate. It is an excellent choice for engineers looking for a reliable solution to mitigate noise and potential damage caused by electrical interference in complex systems.
