Product Overview: LTM8020EV#PBF

The LTM8020EV#PBF is a high-performance, micro-module step-down regulator from Linear Technology, designed to deliver efficiency and simplicity in power management applications. This compact and versatile module is ideal for use in a wide range of products, from portable devices to industrial equipment.

Key Features

• Integrated Design: The LTM8020EV#PBF combines a step-down DC/DC converter with the inductor, control circuitry, and passive components in a single package. This integration simplifies design and reduces the board space required for power management.
• Wide Input Voltage Range: It operates over a wide input voltage range from 3.6V to 36V, making it suitable for applications with varying input supplies, including those powered by multi-cell batteries or industrial supplies.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 10V, allowing for a wide range of uses in different circuit designs and compatibility with various low-voltage ICs.
• High Efficiency: With up to 96% conversion efficiency, this micro-module regulator ensures minimal power loss and heat generation, improving the reliability and lifespan of the end product.

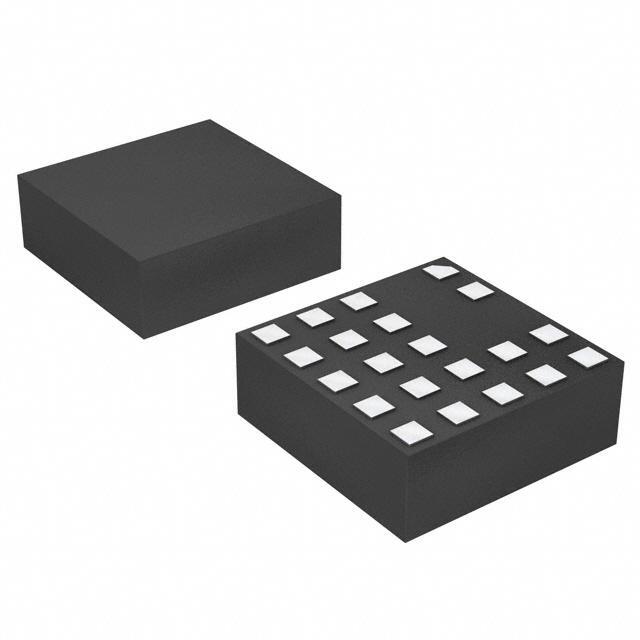

• Compact Size: The LTM8020EV#PBF comes in a compact LGA package, making it an excellent choice for space-constrained applications.
• Robust Protection Features: It includes over-temperature protection, over-current protection, and input under-voltage lockout, enhancing the safety and durability of the application.

Applications

The versatility of the LTM8020EV#PBF makes it an excellent choice for a variety of applications, including:

• Telecommunications
• Automotive systems
• Industrial controls and robotics
• Data storage and networking
• Battery-powered devices
• Medical equipment

Conclusion

The LTM8020EV#PBF from Linear Technology is a powerful, efficient, and easy-to-use micro-module regulator that offers a compact solution for a wide array of power management needs. Its integrated design and robust protection features make it a reliable choice for designers looking to optimize their power systems with minimum effort and maximum performance.
