Linear Technology's LTM8023MPV: A Complete µModule Power Solution

The LTM8023MPV from Linear Technology is a comprehensive, high-efficiency, step-down DC/DC µModule (micromodule) regulator. Designed to simplify the power supply design process, this compact and robust module integrates the inductor, power switches, DC/DC controller, and all the supporting components into a single package. This design significantly reduces the amount of board space required and expedites the design cycle for a wide array of applications.

Key Features

• Wide Input Voltage Range: The LTM8023MPV operates from an input voltage range of 3.6V to 36V, making it suitable for a variety of supply sources, from single-cell Li-Ion batteries to industrial rails.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 10V, accommodating a broad spectrum of applications and ensuring compatibility with modern low-voltage digital ICs.
• High Efficiency: With its high-efficiency design, the module can deliver up to 2A of continuous output current with minimal heat generation.

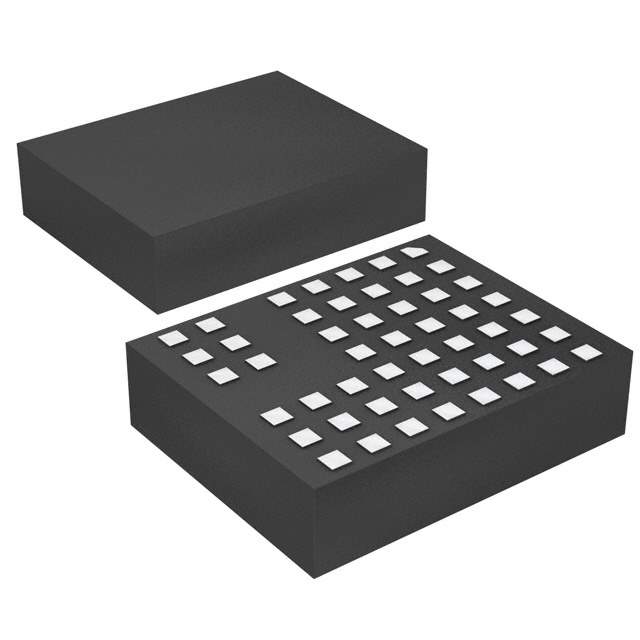

• Robust Thermal Performance: The LTM8023MPV is offered in a compact, over-molded land grid array (LGA) package, which enhances thermal performance and reliability in harsh environments.
• Protection Features: The module includes overvoltage, overcurrent, and over-temperature protection, ensuring the safety and longevity of both the regulator and the system it powers.
• Easy to Use: The LTM8023MPV requires only a few external components to operate, significantly simplifying the design process and reducing time to market.

Applications

The versatility of the LTM8023MPV makes it an ideal choice for a wide range of applications, including industrial controls, automotive systems, telecommunications equipment, and distributed power systems. Its rugged design and comprehensive feature set ensure reliable operation even in the most demanding environments.

Conclusion

Linear Technology's LTM8023MPV is a powerful, efficient, and easy-to-use µModule regulator that streamlines the design of complex power systems. By integrating multiple components into a single package, it not only saves space but also reduces the potential points of failure, enhancing system reliability. Whether for prototyping or for mass production, the LTM8023MPV is a highly versatile solution that delivers performance and convenience in one compact module.
