The LTM9006CY-14#PBF is a high-performance, integrated data acquisition system from Linear Technology, designed to offer a complete solution for digital signal processing applications. This product is part of the µModule® (micro-module) family, which provides a compact and reliable approach to building complex circuits with ease and precision.

Key Features

• Integrated System: The LTM9006CY-14#PBF includes a 14-bit, 125Msps ADC (Analog to Digital Converter), a high-performance digital filter, and all the necessary passive components integrated into a single package. This integration reduces design complexity and accelerates time-to-market.
• High Precision: With its 14-bit resolution and high sampling rate, the product ensures accurate and fast data conversion, making it ideal for demanding applications such as medical imaging, communications, and industrial instrumentation.
• Easy to Use: The micro-module design simplifies the PCB layout process and reduces the risk of assembly errors. It is designed to be easy to implement in a wide range of systems without the need for extensive analog design expertise.

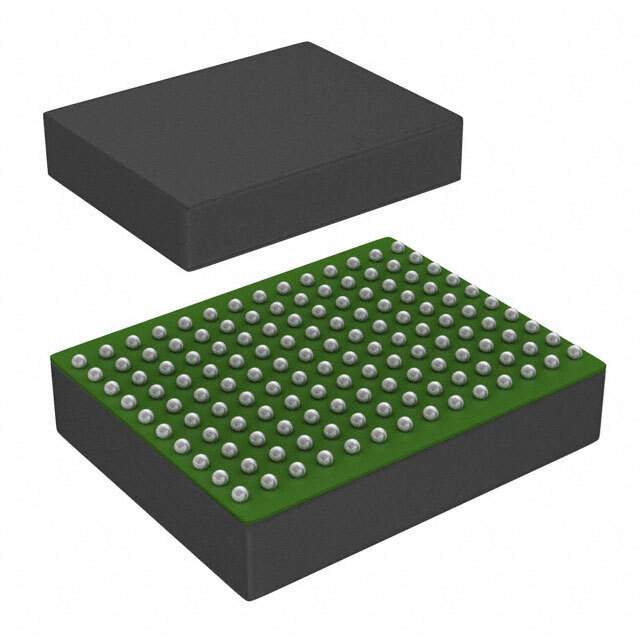

• Robust Performance: Engineered for reliability, the LTM9006CY-14#PBF operates over a wide temperature range and is encapsulated in a compact, thermally efficient BGA package that ensures consistent performance even in harsh environments.

Applications

The versatile nature of the LTM9006CY-14#PBF makes it an excellent choice for a variety of applications, including:

• Communications Infrastructure
• Medical Imaging Systems
• Industrial Instrumentation
• Test and Measurement Equipment

Technical Specifications

For designers seeking a high-quality, integrated data acquisition solution, the LTM9006CY-14#PBF from Linear Technology offers a compelling combination of performance, ease of use, and reliability.
