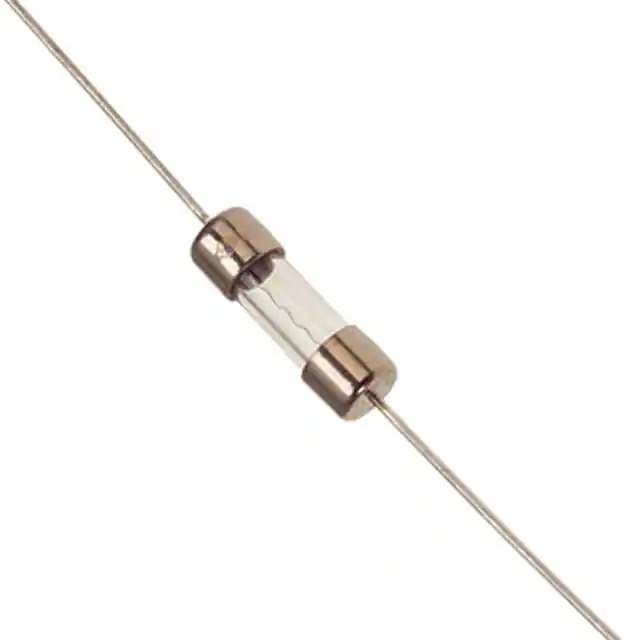

0224005.MXUP Real Image
Same model may have multiple batches, images only for reference.

0224005.MXUP

Part No 0224005.MXUP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 5A 250VAC 2AG
Datasheet
0224005.MXUP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 224
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 5 A
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 2AG, 5mm x 15mm (Axial)
Breaking Capacity @ Rated Voltage 100A
Melting I2t 17
Approval Agency CE, CSA, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.185" Dia x 0.570" L (4.70mm x 14.48mm)
DC Cold Resistance 0.0186 Ohms
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
California Prop 65 Warning Information
Win Source Part Number 853149-0224005.MXUP
Ultra Librarian 3D Model Ultra Librarian 0224005.MXUP CAD Model

Description

The 853149-0224005.MXUP is a glass cartridge fuse from the 224 series.

  • Voltage Rating: 250V AC
  • Response Time: Fast Blow
  • Breaking Capacity: 100A @ rated voltage
  • Size: 0.185" Dia x 0.570" L (4.70mm x 14.48mm)
  • DC Cold Resistance: 0.0186 Ohms
  • Mounting Type: Through-Hole
  • Package: Bulk package of 1,000 pcs
  • Manufacturer: Littelfuse Inc.
  • Product Status: Active
