Same model may have multiple batches, images only for reference.

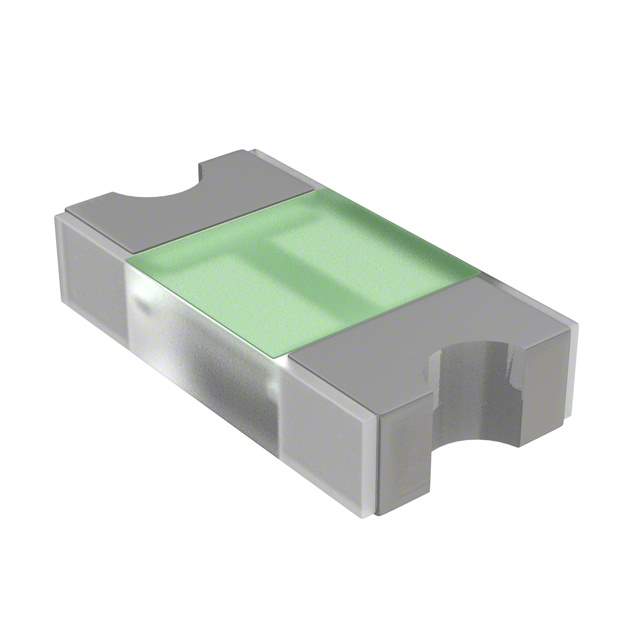

049402.5NRHF Real Image
Same model may have multiple batches, images only for reference.

049402.5NRHF

Part No 049402.5NRHF
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 2.5A 32VAC/VDC 0603
Datasheet
049402.5NRHF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 2.5A
Voltage Rating - AC 32V
Voltage Rating - DC 32V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 35A
Nominal Melting - I2t 0.144
Approvals CSA, UR
Temperature Range - Operating -50°C to 90°C
Nominal Cold Resistance 0.022 Ohm
Win Source Part Number 118627-049402.5NRHF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 049402.5NRHF CAD Model

Description

049402.5NRHF Fuse

The 049402.5NRHF fuse is expertly manufactured to provide reliable circuit protection. Its fast-acting response makes it an ideal choice for preventing overcurrents and potential damage to sensitive electronic components.

  • Applications: LED Lighting, Automotive Electronics, Battery Management Systems
  • Features: High breaking capacity, compact design, reliable performance
  • Benefits: Enhanced safety, prolongs device lifespan, cost-effective solution

    • Additional Details: Rated current of 2.5A, compatible with various circuit boards.
