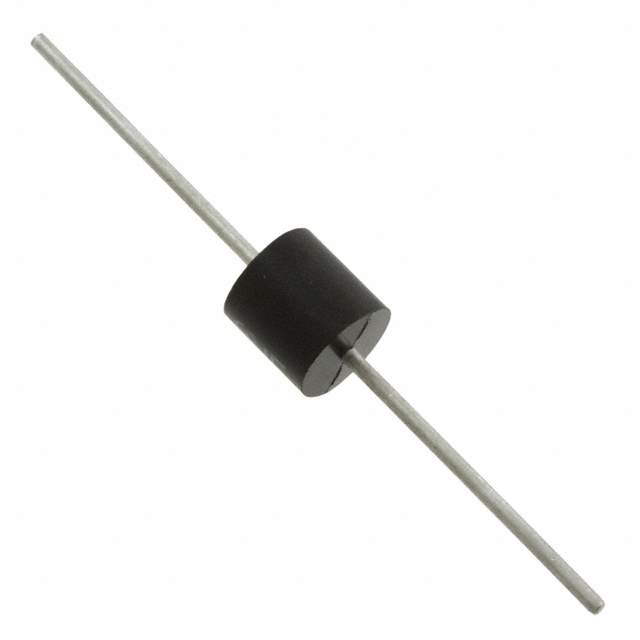

30KPA36CA Real Image
Same model may have multiple batches, images only for reference.

30KPA36CA

Part No 30KPA36CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description Transient Voltage Suppression Diodes Axial Leaded - 30000W | TVS DIODE 36V 61.8V P600
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Cut Tape (CT)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff 36V
Voltage - Breakdown (Minimum) 40.2V
Voltage - Clamping (Maximum) at Ipp 61.8V
Current - Peak Pulse (10/1000μs) 490.3A
Power - Peak Pulse 30000W (30kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package P600, Axial
Supplier Device Package P600
Manufacturer Pack Quantity 1
MSL Level Not Applicable
Win Source Part Number 1128040-30KPA36CA
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 30KPA36CA CAD Model

Description

The Littelfuse Inc. 1128040-30KPA36CA is a through-hole zener diode that has a voltage rating of 36V.

  • Voltage Rating: 36V
  • Power Rating: 30kW
  • Peak Pulse Current: 490.3A (10/1000μs)
  • Application: General-purpose
  • Temperature Range: -55°C to 175°C
  • Package: P600
  • Channel: Bidirectional
  • Nominal Clamping Voltage @ Ipp: 61.8V
  • Popularity: Medium
  • Supply and Demand Status: Limited
