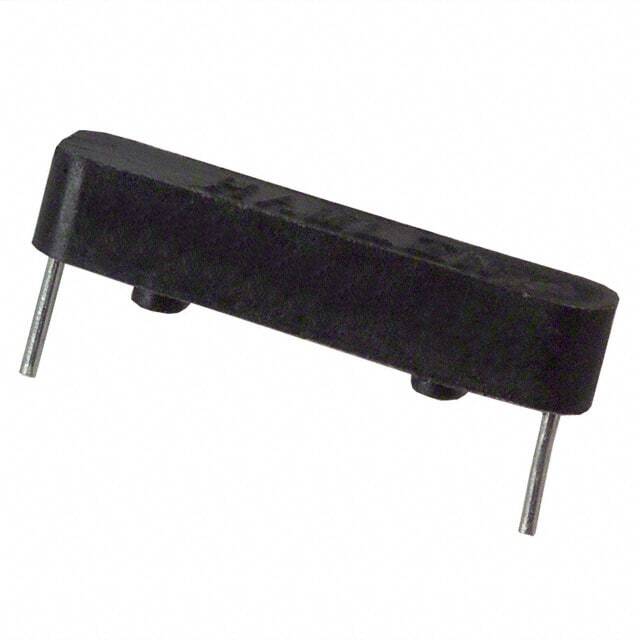

Same model may have multiple batches, images only for reference.

59045-010

Name: 59045-010
Brand: Littelfuse Inc.
SKU: 907514
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	59045-010
Manufacturer	Littelfuse Inc.
Catalog	Magnetic, Reed Switches
Description	SWITCH REED SPST-NO 350MA 140V / Molded Body Reed Switch SPST-NO 10 ~ 20AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Through Hole
Datasheet	59045-010 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Magnetic, Reed Switches
Mfr	Littelfuse Inc.
Series	59045
Package	Bulk
Product Status	Active
Type	Molded Body Reed
Circuit	SPST-NO
Operate Range	10 ~ 20AT
Current - Switching	350mA (AC), 500mA (DC)
Voltage - Switching AC	140 V
Voltage - Switching DC	200 V
Power - Rated	10W
Operate Time	1 ms
Release Time	1 ms
Mounting Type	Through Hole
Termination Style	PC Pin
Length - Overall	0.700" (17.78mm)
Size - Body	0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm)
Height Above Board	0.170" (4.33mm)
Temperature Range - Operating	-40°C ~ 105°C
Capacitance	0.3 pF
Current - Carry	1A (DC)
Standard Package	200 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
California Prop 65	Warning Information
Win Source Part Number	907514-59045-010
Ultra Librarian 3D Model	Ultra Librarian 59045-010 CAD Model

Alternative Products

Description

The 907514-59045-010 is a molded body reed switch in the 59045 series by Littelfuse Inc.

Type: Magnetic switch
Termination Style: PC pin
Package: Bulk
Height Above Board: 0.170" (4.33mm)
Overall Length: 0.700" (17.78mm)
Capacitance: 0.3 pF
Circuit: Single-pole, single-throw normally open
Power Rating: 10W
Operate Range: 10 ~ 20AT
Switching Current (AC): 350mA (AC)
Switching Current (DC): 500mA (DC)
Switching Voltage (AC): 140V (AC)
Switching Voltage (DC): 200V (DC)
Mounting: Through-hole
Operating Temperature Range: -40°C to 105°C
Operate Time & Release Time: 1 ms
Status: Active
Compliance: California Prop 65
