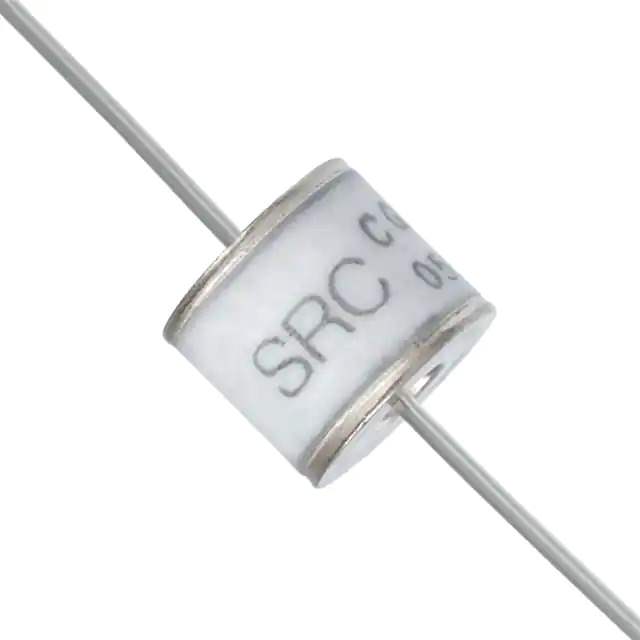

CG2230L Real Image
Same model may have multiple batches, images only for reference.

CG2230L

Part No CG2230L
Manufacturer Littelfuse Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 230V 20KA 2 POLE TH / Gas Discharge Tube 230 V 20000A (20kA) 2 Pole Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr Littelfuse Inc.
Series CG2
Package Tray
Product Status Active
Voltage - DC Spark Over (Nom) 230 V
Impulse Discharge Current (8/20µs) 20000A (20kA)
Number of Poles 2
Fail Short No
Mounting Type Through Hole
Package / Case Axial Cylinder
Standard Package 350 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
California Prop 65 Warning Information
Win Source Part Number 578694-CG2230L
Ultra Librarian 3D Model Ultra Librarian CG2230L CAD Model

Description

The CG2230L is a gas discharge tube arrester designed for circuit protection applications. It is manufactured by Littelfuse Inc.

  • Series: CG2
  • Package: Axial Cylinder
  • Voltage Rating: 230V
  • Poles: 2
  • Maximum Impulse Discharge Current: 20kA
  • Mounting: Through Hole
  • Package: Tray
  • Pieces per Tray: 350
  • Status: Active
  • REACH: Unaffected
  • California Prop 65: Compliant
