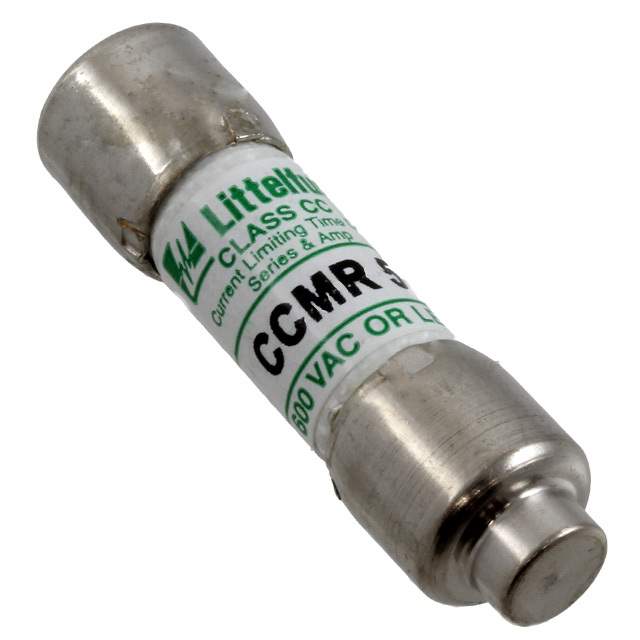

CCMR001.T Real Image
Same model may have multiple batches, images only for reference.

CCMR001.T

Part No CCMR001.T
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 1A 600VAC/250VDC / 1A 600 V AC 250 V DC Fuse Cartridge Requires Holder
Datasheet
CCMR001.T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD®, POWR-PRO® CCMR
Package Bulk
Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 1A
Voltage Rating - AC 600 V
Voltage Rating - DC 250 V
Response Time Slow Blow
Applications Motor Protection
Class CC
Approval Agency CE, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1338048-CCMR001.T
Ultra Librarian 3D Model Ultra Librarian CCMR001.T CAD Model

Description

The POWR-GARD®, POWR-PRO® CCMR series fuse from Littelfuse Inc. with Win Source Part Number 1338048-CCMR001.T is a slow blow cartridge type fuse.

  • Voltage Rating: 600 V AC and 250 V DC
  • Breaking Capacity: 200kA AC and 20kA DC @ rated voltage
  • Current Rating: 1A
  • Category: Circuit Protection - Electrical, Specialty Fuses
  • Status: Obsolete
  • Mounting: Requires a Holder
  • Package Size: 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
  • Type: 5AG, 10mm x 38mm (Midget)
  • Availability: in the open market
