Same model may have multiple batches, images only for reference.

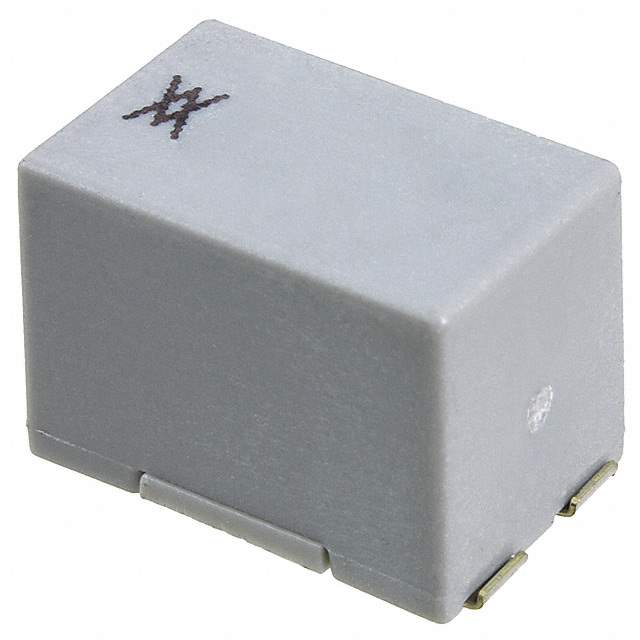

TSM600-250F-RA-2 Real Image
Same model may have multiple batches, images only for reference.

TSM600-250F-RA-2

Part No TSM600-250F-RA-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PolySwitch Resettable Devices Telecommunications & Networking Devices | PTC RESET FUSE 250V 250MA 4SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 250V (600V Int)
Current - Max 3A
Current - Hold (Ih) (Maximum) 250mA
Current - Trip (It) 860mA
Time to Trip 6s
Resistance - Initial (Ri) (Minimum) 1 Ohms
Resistance - Post Trip (R1) (Maximum) 5 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 4-SMD
Parts Dimension 0.681" L x 0.425" W (17.30mm x 10.80mm)
Thickness (Maximum) 0.461" (11.70mm)
Approvals CSA, UL
Manufacturer Pack Quantity 1
MSL Level 2A (4 Weeks)
Win Source Part Number 1274813-TSM600-250F-RA-2
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSM600-250F-RA-2 CAD Model

Description

The Littelfuse Inc. TSM600-250F-RA-2 is a polymeric type SMD circuit protection device that is CSA and UL approved.

  • Maximum Voltage Rating: 250V (600V Int)
  • Maximum Current Rating: 3A
  • Current Trip Rating: 860mA
  • Time to Trip: 6 seconds
  • Current Hold Rating: 250mA
  • Initial Resistance Rating: 1 Ohm
  • Post Trip Resistance Rating: 5 Ohms
  • Supply and Demand Status: Balanced
  • Manufacturer Package: 4-SMD
  • Thickness: 0.461" (11.70mm)
  • Operating Temperature Range: -40°C ~ 85°C
  • MSL Level: 2A (4 Weeks)
  • Parts Dimension: 0.681" L x 0.425" W (17.30mm x 10.80mm)
