Same model may have multiple batches, images only for reference.

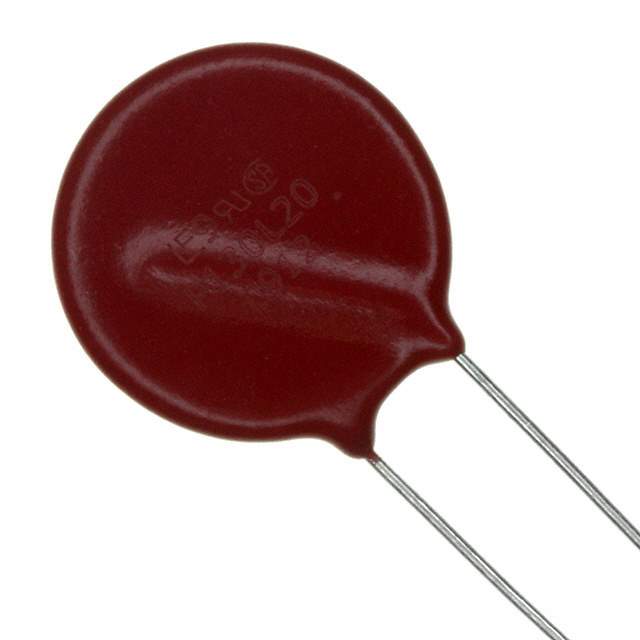

V320LA40BP Real Image
Same model may have multiple batches, images only for reference.

V320LA40BP

Part No V320LA40BP
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 501V 6.5KA DISC 20MM
Datasheet
V320LA40BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Varistor Voltage (Min) 462V
Varistor Voltage (Typ) 501V
Varistor Voltage (Max) 540V
Current - Surge 6.5kA
Energy 150J
Number of Circuits 1
Maximum AC Volts 320VAC
Maximum DC Volts 420VDC
Capacitance @ Frequency 750pF @ 1MHz
Temperature Range - Operating -55°C to 85°C (TA)
Mounting Through Hole
Dimension Disc 20mm
Win Source Part Number 109769-V320LA40BP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Safety
Ultra Librarian 3D Model Ultra Librarian V320LA40BP CAD Model

Description

The Littelfuse Inc. 109769-V320LA40BP is a through-hole circuit protection component with a capacitance of 750pF at 1MHz.

  • Capacitance: 750pF @ 1MHz
  • Varistor Voltage: 462V to 540V
  • Maximum DC Voltage: 420VDC
  • Maximum AC Voltage: 320VAC
  • Surge Current: 6.5kA
  • Energy Rating: 150J
  • Temperature Range: -55°C to 85°C (TA)
  • Dimension: Disc 20mm
