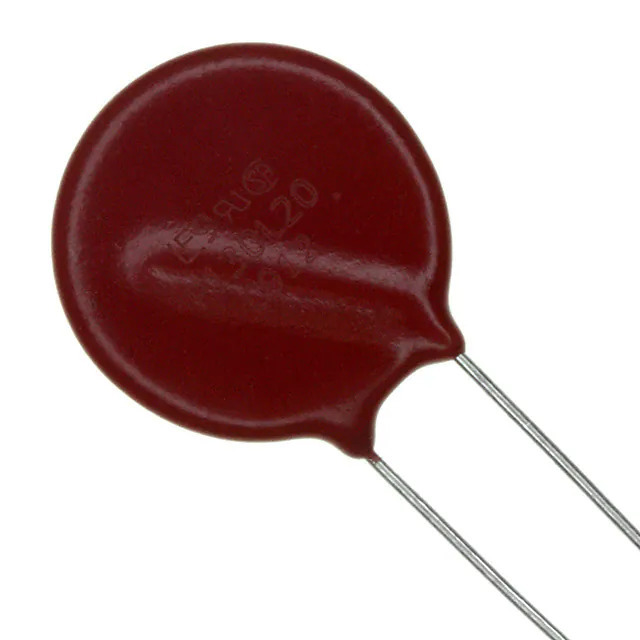

V36ZA80P Littelfuse Inc.
Same model may have multiple batches, images only for reference.

V36ZA80P

Part No V36ZA80P
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 36V 2KA DISC 20MM / 36 V 2 kA Varistor 1 Circuit Through Hole Disc 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr Littelfuse Inc.
Series ZA
Package Bulk
Product Status Active
Maximum AC Volts 23 V
Maximum DC Volts 28 V
Varistor Voltage (Min) 32.4 V
Varistor Voltage (Typ) 36 V
Varistor Voltage (Max) 39.6 V
Current - Surge 2 kA
Energy 160J
Number of Circuits 1
Capacitance @ Frequency 12000 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Disc 20mm
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1361159-V36ZA80P
Ultra Librarian 3D Model Ultra Librarian V36ZA80P CAD Model

Description

The V36ZA80P from Littelfuse Inc. is a transient voltage suppressor (TVS) varistor designed for circuit protection.

  • Operating Temperature: -55°C to 85°C
  • Maximum AC Voltage: 23V
  • Maximum DC Voltage: 28V
  • Varistor Voltage: 32.4V to 39.6V
  • Surge Current Rating: 2kA
  • Energy Rating: 160J
