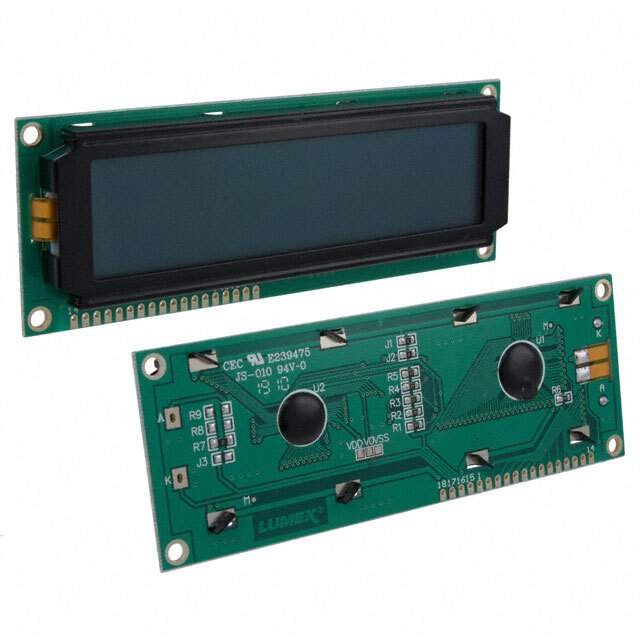

LCR-U01602DSF/DWH Real Image
Same model may have multiple batches, images only for reference.

LCR-U01602DSF/DWH

Part No LCR-U01602DSF/DWH
Manufacturer Lumex Opto/Components Inc.
Catalog Display Modules - LCD, OLED Character and Numeric
Description LCD MOD 32DIG 16X2 TRANSFLCT WHT / Character Display Module Transflective 5 x 7 Dots w/Cursor STN - Super-Twisted Nematic LED - White Parallel 122.00mm x 44.00mm x 10.60mm
Datasheet
LCR-U01602DSF/DWH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LCD, OLED Character and Numeric
Mfr Lumex Opto/Components Inc.
Package Box
Number of Characters 32
Display Format 16 x 2
Character Format 5 x 7 Dots w/Cursor
Display Type STN - Super-Twisted Nematic
Display Mode Transflective
Character Size 9.66mm H x 4.84mm W
Outline L x W x H 122.00mm x 44.00mm x 10.60mm
Viewing Area 99.00mm L x 24.00mm W
Backlight LED - White
Voltage - Supply 4.7V ~ 5.3V
Dot Size 0.92mm W x 1.10mm H
Interface Parallel
Temperature Range - Operating -40°C ~ 85°C
Background Color Green
Base Product Number LCR-U01602
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0020
Win Source Part Number 1350091-LCR-U01602DSF/DWH
Ultra Librarian 3D Model Ultra Librarian LCR-U01602DSF/DWH CAD Model

Description

The LCR-U01602DSF/DWH is a 16 x 2 STN-Super-Twisted Nematic LCD display from Lumex Opto/Components Inc. LCR-U01602DSF/DWH is manufactured by Lumex Opto/Components Inc..

  • Number of Characters: 16 x 2
  • Display Format: 16 x 2
  • Viewing Area: 99.00mm L x 24.00mm W
  • Character Size: 9.66mm H x 4.84mm W
  • Interface: Parallel
  • Display Type: STN - Super-Twisted Nematic
  • Mode: Transflective
  • Packaging: Box
  • Package: 1
  • Backlight: LED - White
  • Background Color: Green
  • Category: Optoelectronics-Character and Numeric
