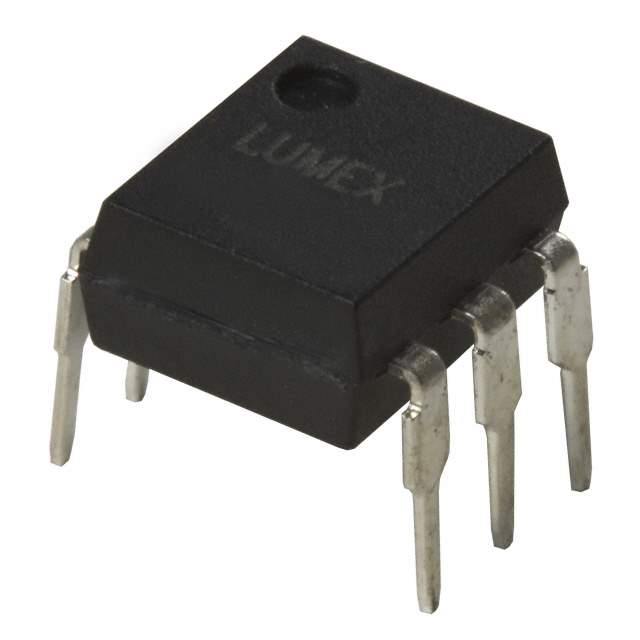

OCP-PCP116 Real Image
Same model may have multiple batches, images only for reference.

OCP-PCP116

Part No OCP-PCP116
Manufacturer Lumex Opto/Components Inc.
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN COLLECTOR 6DIP / Optocoupler Logic-Out Pull Up DC-IN 1-CH 6-Pin PDIP SMD
Datasheet
OCP-PCP116 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lumex Opto/Components Inc.
Packaging Tube
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Input Type DC
Output Type Open Collector
Output Current per Channel 50mA
Propagation Delay tpLH / tpHL (Maximum) 9μs, 15μs
Rise / Fall Time (Typ) 100ns, 50ns
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Operating Supply Voltage 4.5 V ~ 17 V
Operating Temperature Range -25°C ~ 85°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm)
Manufacturer Package 6-DIP
Win Source Part Number 790886-OCP-PCP116
Popularity Medium
Supply and Demand Status Limited
Family Name OCP-PCP116
Introduction Date December 13, 2001
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian OCP-PCP116 CAD Model

Description

The Lumex Opto/Components Inc. OCP-PCP116 is an isolator component.

  • Package: 6-DIP (0.300", 7.62mm)
  • Operating Supply Voltage: 4.5V to 17V
  • Voltage-Forward (Vf): 1.2V
  • Output Current per channel: 50mA
  • Current-DC Forward (If) (Maximum): 50mA
  • Propagation Delay tpLH/tpHL (Maximum): 9μs, 15μs
  • Voltage-Isolation: 5000Vrms
  • Inputs-side 1/side 2: 1/0
  • Family Name: OCP-PCP116
