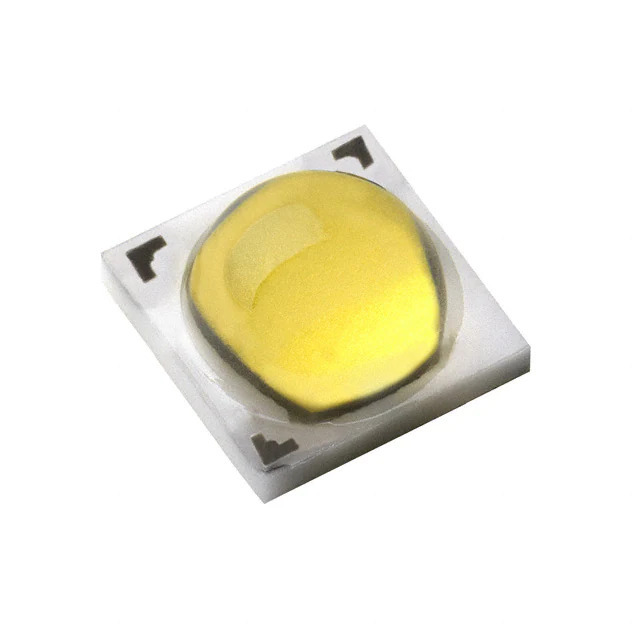

Same model may have multiple batches, images only for reference.
L1T2-5770000000000 Lumileds
Same model may have multiple batches, images only for reference.

L1T2-5770000000000

Part No L1T2-5770000000000
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 5700K 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr Lumileds
Series LUXEON TX
Package Tape & Reel
Product Status Active
Color White, Cool
CCT (K) 5700K
Flux @ 85°C, Current - Test 275lm (Typ)
Flux @ 25°C, Current - Test -
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.8V
Lumens/Watt @ Current - Test 140 lm/W
CRI (Color Rendering Index) 70
Current - Max 1.5A
Viewing Angle 120°
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead Exposed Pad
Supplier Device Package -
Size / Dimension 0.146" L x 0.146" W (3.70mm x 3.70mm)
Height - Seated (Max) 0.083" (2.12mm)
Thermal Resistance of Package 3°C/W
Base Product Number L1T2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371978-L1T2-5770000000000
Ultra Librarian 3D Model Ultra Librarian L1T2-5770000000000 CAD Model

Description

The 1371978-L1T2-5770000000000 is a white LED lighting component from the LUXEON TX series manufactured by Lumileds.

  • Mounting Type: Surface Mount
  • Package: 2-SMD, no lead exposed pad
  • Forward Voltage (Vf): 2.8V
  • Maximum Current: 1.5A
  • Viewing Angle: 120°
  • Color Temperature (CCT): 5700K
  • Flux @ 85°C: 275lm
  • Luminous Efficacy: 140 lm/W @ test current
  • Color Rendering Index (CRI): 70
  • Size: 0.146" L x 0.146" W (3.70mm x 3.70mm)
  • Height: 0.083" (2.12mm)
