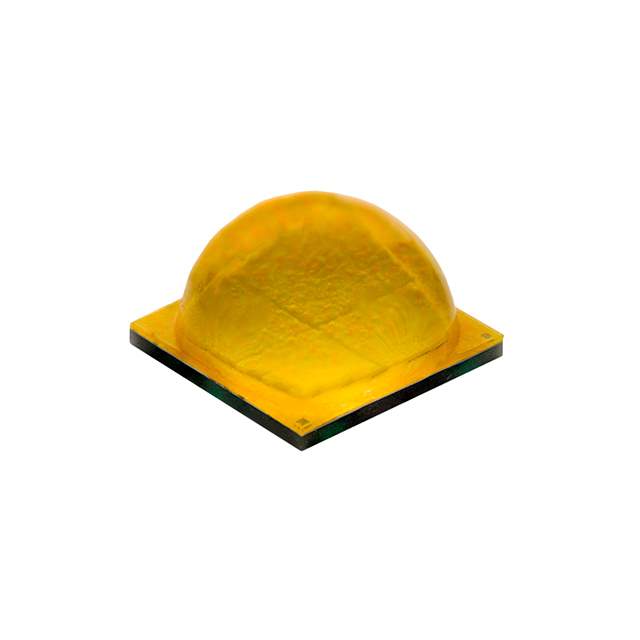

XHP70B-00-0000-0D0HM440G Real Image
Same model may have multiple batches, images only for reference.

XHP70B-00-0000-0D0HM440G

Part No XHP70B-00-0000-0D0HM440G
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XHP70.2 NEUT WHITE 4000K SMD / LED Lighting series White, Neutral 4000K 3-Step MacAdam Ellipse 6V, 12V 2.1A, 1.05A 125° 2828 (7070 Metric)
Datasheet
XHP70B-00-0000-0D0HM440G Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® XHP70.2
Package Tape & Reel
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 1538lm (1485lm ~ 1590lm)
Current - Test 2.1A, 1.05A
Voltage - Forward (Vf) (Typ) 6V, 12V
Lumens/Watt @ Current - Test 131 lm/W
CRI (Color Rendering Index) 80
Current - Max 4.8A, 2.4A
Viewing Angle 125°
Mounting SMD (SMT)
Package / Case 2828 (7070 Metric)
Supplier Device Package 2-SMD
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.171" (4.35mm)
Thermal Resistance of Package 0.9°C/W
Base Product Number XHP70B
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names XHP70B-00-0000-0D0HM440GCT,XHP70B-00-0000-0D0HM440GTR,XHP70B-00-0000-0D0HM440GDKR
Standard Package 1,000
Win Source Part Number 985802-XHP70B-00-0000-0D0HM440G
Ultra Librarian 3D Model Ultra Librarian XHP70B-00-0000-0D0HM440G CAD Model

Description

The XLamp® XHP70.2 LED lighting-white is an optoelectronic product that has a viewing angle of 125°.

  • Viewing Angle: 125°
  • Voltage Forward (Vf): 6V and 12V
  • Current Max: 4.8A and 2.4A
  • CCT (K): 4000K 3-Step MacAdam Ellipse
  • CRI (Color Rendering Index): 80
  • Thermal Resistance of Package: 0.9°C/W
  • Mounting: SMD (SMT)
