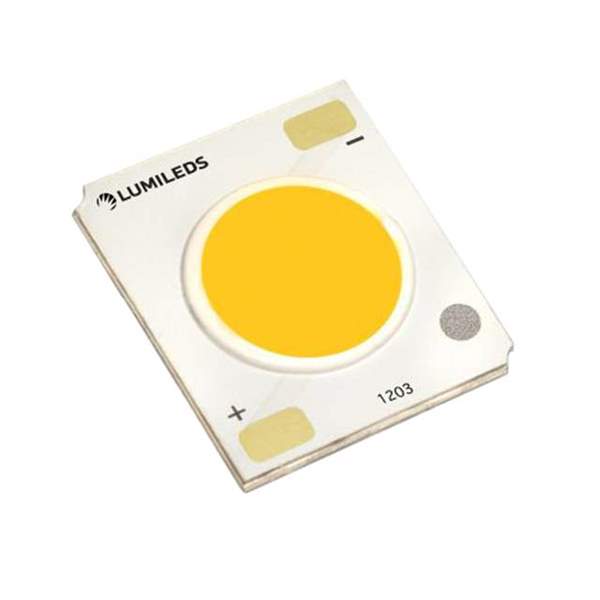

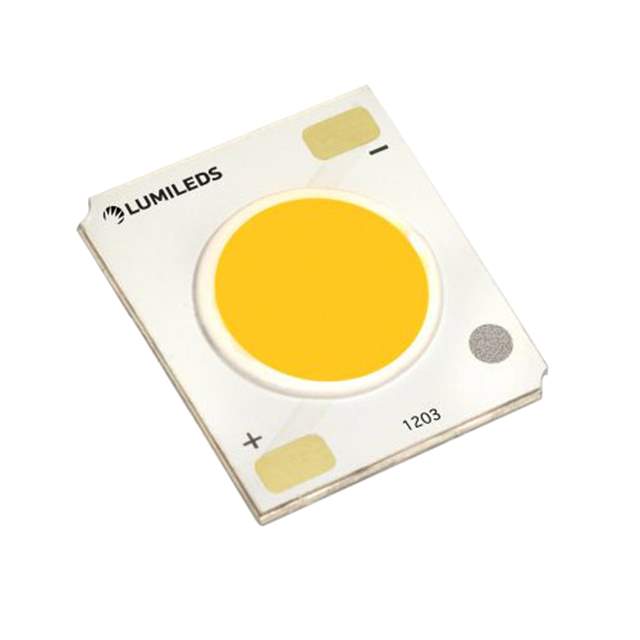

LHC1-3080-1203 Real Image
Same model may have multiple batches, images only for reference.

LHC1-3080-1203

Part No LHC1-3080-1203
Manufacturer Lumileds
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB LUXEON WARM WHITE SQUARE / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
LHC1-3080-1203 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Lumileds
Series LUXEON CoB
Package Tube
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 1225lm (Typ)
Current - Test 300mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 35.5V
Lumens/Watt @ Current - Test 115 lm/W
Current - Max 600mA
CRI (Color Rendering Index) 80
Viewing Angle 125°
Dimension 19.00mm L x 16.00mm W
Height 1.50mm
Light Emitting Surface (LES) 9.00mm Dia
Lens Type Flat
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 100
Win Source Part Number 1218747-LHC1-3080-1203
Ultra Librarian 3D Model Ultra Librarian LHC1-3080-1203 CAD Model

Description

The LUXEON CoB series from Lumileds offers high-quality chip-on-board (COB) LED packages for use in a wide range of applications.

  • Model: 1218747-LHC1-3080-1203
  • Configuration: Square
  • Maximum Current: 600mA
  • Viewing Angle: 125 degrees
  • Lens Type: Flat
  • Light Emitting Surface (LES): 9mm diameter
  • Color Temperature: 3000K
  • Color Rendering Index (CRI): 80
  • Height: 1.5mm
  • Dimension: 19mm L x 16mm W
  • Packaging: Tube
  • Standard Package: 100 units
  • Status: Obsolete
  • Luminous Flux: 1225lm (Typ) @ current/temperature
