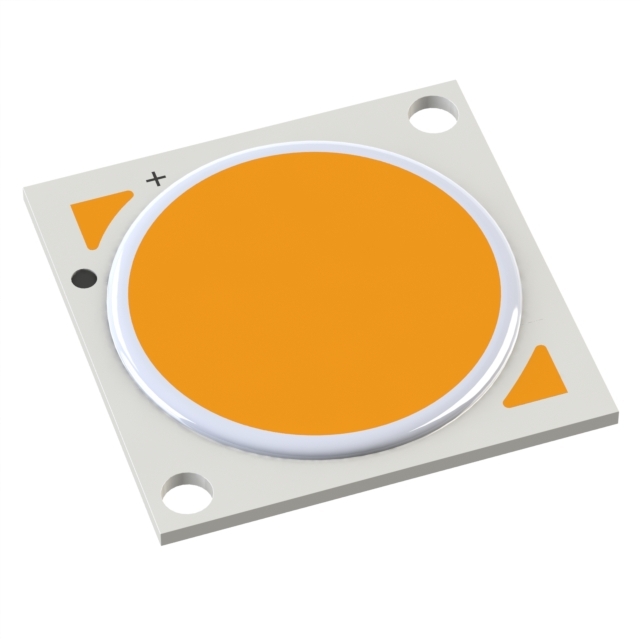

Same model may have multiple batches, images only for reference.
CXM-22-40-80-54-AC30-F4-3 Luminus Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CXM-22-40-80-54-AC30-F4-3

Part No CXM-22-40-80-54-AC30-F4-3
Manufacturer Luminus Devices Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXM-22 GEN3 WHT SQ 4000K
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 8645lm (Typ)
Current - Test 1.1A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 51V
Lumens/Watt @ Current - Test 154 lm/W
Current - Max 2.4A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Size / Dimension 28.00mm L x 28.00mm W
Height 1.37mm
Light Emitting Surface (LES) 22.00mm Dia
Lens Type Flat
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1571466-CXM-22-40-80-54-AC30-F4-3
Ultra Librarian 3D Model Ultra Librarian CXM-22-40-80-54-AC30-F4-3 CAD Model

Description

N
