Same model may have multiple batches, images only for reference.

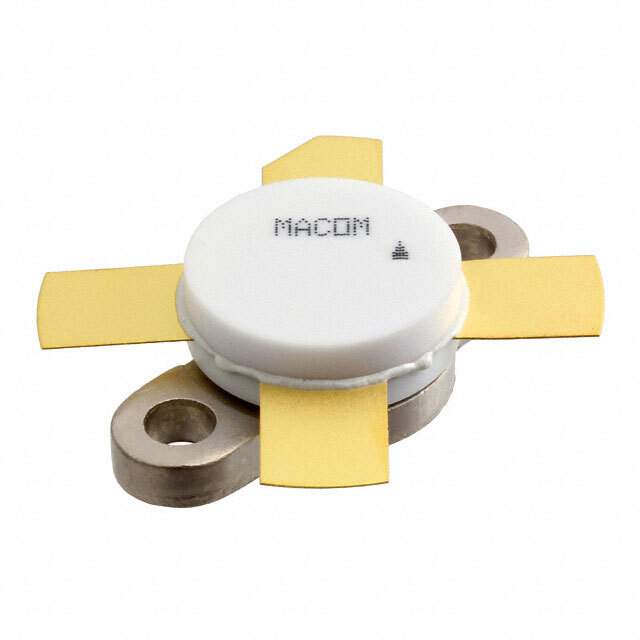

MRF421 Real Image
Same model may have multiple batches, images only for reference.

MRF421

Part No MRF421
Manufacturer M/A-Com Technology Solutions
Catalog RF Transistors (BJT)
Description TRANS RF NPN 20V 20A 211-11 / RF Transistor NPN 20V 20A 100W Chassis Mount 211-11, Style 2
Datasheet
MRF421 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - RF
Manufacturer MACOM Technology Solutions
Packaging Tray
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Max) 20V
Gain 12dB
Power - Max 100W
DC Current Gain (hFE) (Min) @ Ic, Vce 10 @ 5A, 5V
Current - Collector (Ic) (Max) 20A
Mounting Chassis Mount
Case / Package 211-11, Style 2
Supplier Device Package 211-11, Style 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 1465-1184
Standard Package 20
Win Source Part Number 1325610-MRF421
Ultra Librarian 3D Model Ultra Librarian MRF421 CAD Model

Description

The MACOM Technology Solutions MRF421 is an NPN type bipolar transistor with a power of 100W and a voltage collector emitter breakdown of 20V.

  • Power: 100W
  • Voltage Collector Emitter Breakdown: 20V
  • Current Collector: 20A
  • Gain: 12dB
  • Component Category: Discrete Semiconductor Products>Transistors - Bipolar (BJT) - RF
  • Package: Tray
  • Standard Package: 20
  • RoHS Compliance: RoHS3 compliant
  • ECCN: EAR99
