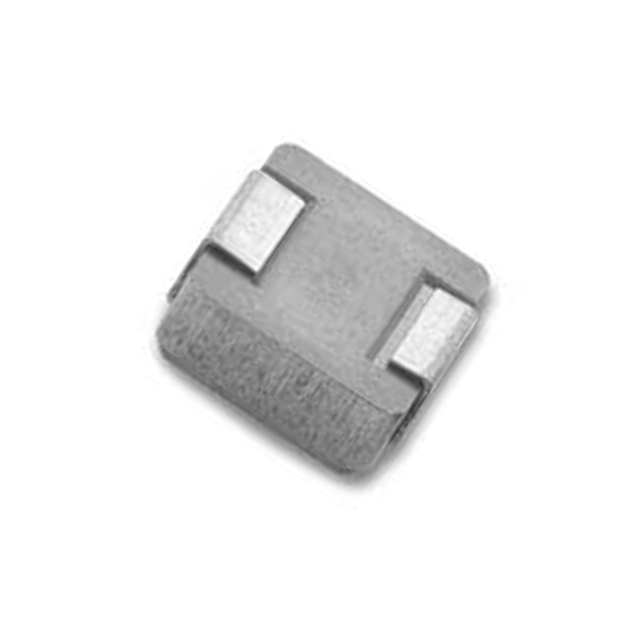

MMD-06CZ-R47M-V1-RU Real Image
Same model may have multiple batches, images only for reference.

MMD-06CZ-R47M-V1-RU

Part No MMD-06CZ-R47M-V1-RU
Manufacturer Mag Layers
Catalog Fixed Inductors
Description FIXED IND 470NH 17.5A 4.2MOHM SM / 470 nH Shielded Molded Inductor 17.5 A 4.2mOhm Max Nonstandard
Datasheet
MMD-06CZ-R47M-V1-RU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Mag Layers
Series MMD-06CZ-V1
Package Tape & Reel (TR)
Type Molded
Material - Core Metal
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 17.5 A
Current - Saturation (Isat) 26A
Shielding Shielded
DC Resistance (DCR) 4.2mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 2669-MMD-06CZ-R47M-V1-RU
Standard Package 25
Win Source Part Number 1079490-MMD-06CZ-R47M-V1-RU
Ultra Librarian 3D Model Ultra Librarian MMD-06CZ-R47M-V1-RU CAD Model

Description

The MMD-06CZ-V1 is a molded inductor from Mag Layers that is shielded and has an inductance of 470 nH.

  • Maximum Seated Height: 0.118 inches
  • Package/Case: Nonstandard
  • DC Resistance: 4.2 mOhm
  • Tolerance: ±20%
  • Temperature Range: -55°C to 125°C
  • Packaging: Tape and Reel
  • Standard Package: 25 units
  • Core: Metal
  • Current Rating: 17.5A
  • Current Saturation: 26A
