Same model may have multiple batches, images only for reference.

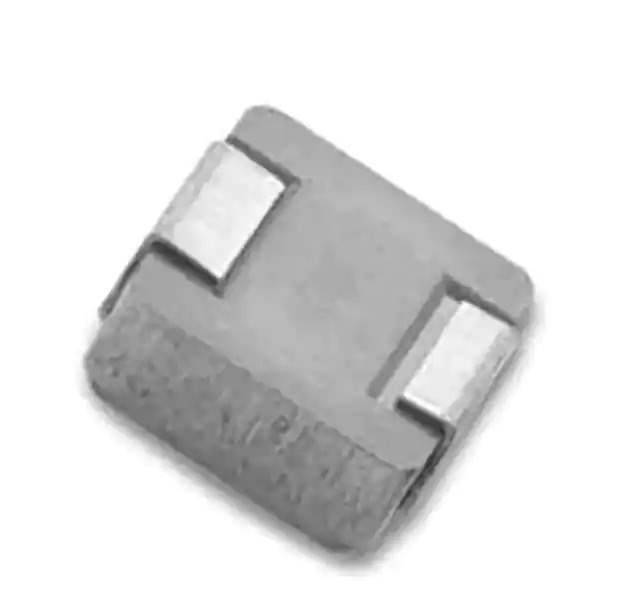

MMD-12EZ-2R2M-V1-RU Real Image
Same model may have multiple batches, images only for reference.

MMD-12EZ-2R2M-V1-RU

Part No MMD-12EZ-2R2M-V1-RU
Manufacturer Mag Layers
Catalog Fixed Inductors
Description FIXED IND 2.2UH 20A 5.5 MOHM SMD / 2.2 μH Shielded Molded Inductor 20 A 5.5mOhm Max Nonstandard
Datasheet
MMD-12EZ-2R2M-V1-RU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Mag Layers
Series MMD-12EZ-RU
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 20 A
Current - Saturation (Isat) 32A
Shielding Shielded
DC Resistance (DCR) 5.5mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.520" L x 0.508" W (13.20mm x 12.90mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 885375-MMD-12EZ-2R2M-V1-RU
Ultra Librarian 3D Model Ultra Librarian MMD-12EZ-2R2M-V1-RU CAD Model

Description

The MMD-12EZ-RU is a fixed inductor from Mag Layers.

  • Series: MMD-12EZ-RU
  • Size: 0.520" L x 0.508" W
  • Height: 0.197"
  • Inductance: 2.2 μH
  • Tolerance: ±20%
  • Shielded: Yes
  • Mounting: Surface mount
  • Package: Standard package of 10 pieces
  • DC Resistance (DCR): 5.5mΩ
  • Operating Temperature: -55°C to 125°C
  • Status: Active product
