Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr Analog Devices Inc./Maxim Integrated
Package Box
Type Power Management
Function Battery Charger
Utilized IC / Part MAX20340
Supplied Contents Board(s)
Secondary Attributes I2C Interface
Base Product Number MAX20340
MSL Level 1 (Unlimited)
ECCN 5A002A1
HTSUS 8473.30.1180
Other Names 175-MAX20340EVKIT#
Standard Package 1
Win Source Part Number 1151929-MAX20340EVKIT#
Ultra Librarian 3D Model Ultra Librarian MAX20340EVKIT# CAD Model

Description

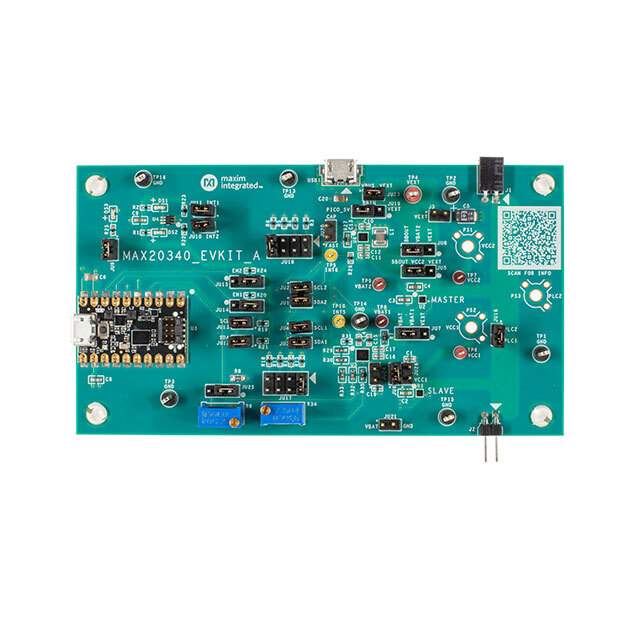

The Maxim Integrated MAX20340EVKIT# is a comprehensive evaluation kit designed to demonstrate the capabilities of the MAX20340, a power management integrated circuit (PMIC) with bidirectional current regulation. This evaluation kit provides engineers and developers with a robust platform for testing and prototyping applications that require efficient power regulation and management.

The MAX20340 is an ideal solution for compact, wearable electronics and IoT devices where size and power efficiency are critical. The chip's small form factor and low quiescent current make it an excellent choice for battery-powered applications. With its advanced features, the MAX20340 supports a wide range of functionalities, including power monitoring, fault protection, and dynamic voltage scaling.

The evaluation kit includes the evaluation board for the MAX20340, a USB interface for easy connection to a computer, and pre-installed firmware that enables users to quickly begin testing. The board is equipped with various test points and jumpers, allowing for thorough examination and manipulation of the PMIC's features.

Key features of the MAX20340EVKIT# include:

  • User-friendly evaluation software for Windows-based PCs, which provides a graphical user interface (GUI) for easy monitoring and control of the PMIC's functions.
  • On-board load resistors to simulate real-world operating conditions and assess the PMIC's performance under various loads.
  • Proven PCB layout that exemplifies best design practices for optimal performance and minimal interference.
  • Comprehensive documentation, including schematics, layout files, and detailed user guides to support a streamlined evaluation process.

The MAX20340EVKIT# is an invaluable tool for designers looking to explore the capabilities of the MAX20340 PMIC and develop energy-efficient power management solutions for their next-generation electronic devices. With this evaluation kit, Maxim Integrated continues to empower innovation and ease the development process for engineers worldwide.
