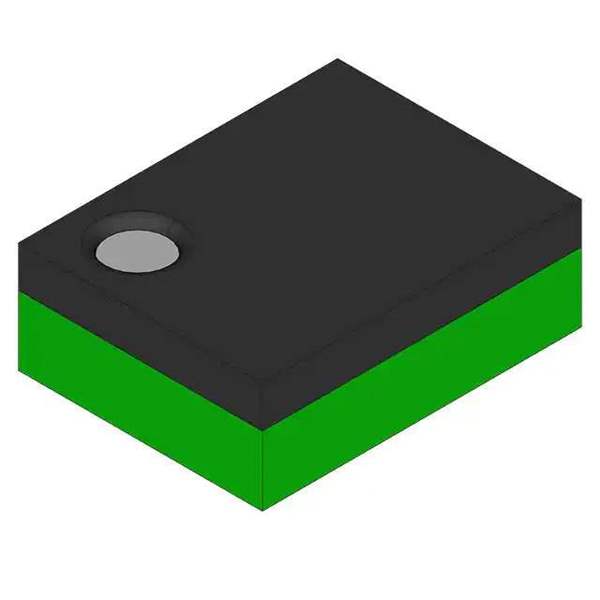

Maxim Integrated MAX2247EBC Low-Voltage, SiGe Power Amplifier for 2.4GHz WLAN Applications

The MAX2247EBC from Maxim Integrated is a high-performance, low-voltage power amplifier designed specifically for 2.4GHz wireless local area network (WLAN) applications. This power amplifier is based on Silicon-Germanium (SiGe) technology, which provides excellent RF performance with low power consumption, making it an ideal choice for portable battery-powered devices such as smartphones, tablets, and other wireless-enabled electronics.

The MAX2247EBC operates from a single supply voltage as low as 2.7V, which is conducive to systems where power efficiency is crucial. It delivers a high linear output power of up to +22dBm with a 3% error vector magnitude (EVM), ensuring robust and reliable wireless communication. The power amplifier also features an integrated power detector that provides closed-loop power control within the system, further enhancing its performance and efficiency.

Designed for 802.11b/g wireless standards, the MAX2247EBC is optimized for direct modulation with transmitters that use orthogonal frequency-division multiplexing (OFDM) or complementary code keying (CCK) modulation schemes. Its excellent linearity minimizes the distortion of the transmitted signal, which is crucial for maintaining the integrity of high-speed data transmission.

The compact chip-scale package (UCSP™) of the MAX2247EBC measures just 3mm x 3mm, which is highly beneficial for space-constrained applications. Furthermore, the power amplifier integrates an input match, reducing the need for external components and simplifying the design for system engineers.

Key features of the MAX2247EBC include:

• High Gain: 29dB typical gain at 2.4GHz
• Low Voltage Operation: 2.7V to 3.6V supply voltage range
• Integrated Power Detector: Simplifies closed-loop power control
• Thermal Shutdown: Protects the device from overheating
• Adjustable Bias Control: Allows for performance optimization

In summary, the Maxim Integrated MAX2247EBC power amplifier is a highly efficient solution for WLAN applications, offering robust performance in a small footprint. Its integration of advanced features and SiGe technology makes it a top choice for designers aiming to enhance wireless connectivity in their products.
