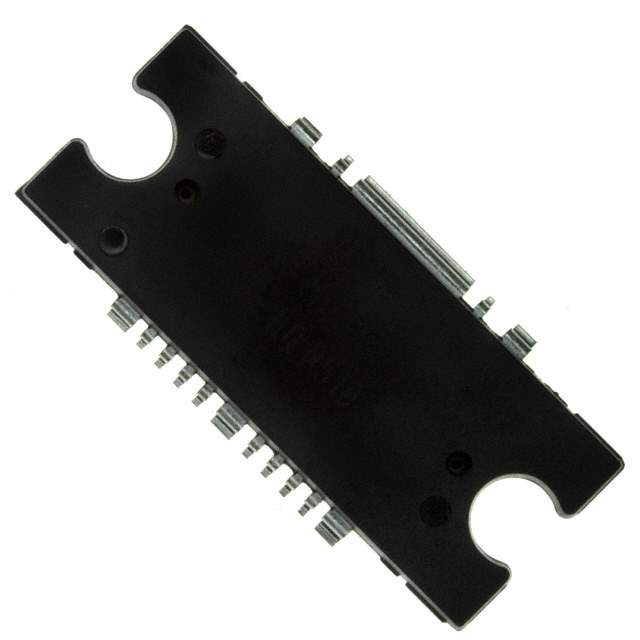

Introducing the MW4IC2230GMBR1 RF Power Transistor from NXP

The MW4IC2230GMBR1 is a high-performance RF power transistor designed by NXP Semiconductors, a leader in innovative high-frequency solutions. This cutting-edge product is part of NXP's extensive portfolio of RF power transistors that are engineered to meet the demanding requirements of wireless infrastructure applications, including cellular base station transceivers, RF energy, and industrial, scientific, and medical (ISM) applications.

Key Features of the MW4IC2230GMBR1

• Frequency Range: The transistor operates within a frequency range of 2110 to 2170 MHz, making it highly suitable for 3G and 4G LTE applications within the respective bands.
• High Output Power: With an impressive output power of 30 W, this device can deliver the necessary drive for high-power amplifiers in cellular base stations, ensuring reliable communication and broad coverage.
• High Gain: The MW4IC2230GMBR1 boasts a high gain of 15 dB, which allows for efficient signal amplification with minimal additional components.
• Efficiency: Energy efficiency is paramount in RF applications, and the MW4IC2230GMBR1 offers an excellent efficiency of 48%, reducing operational costs and thermal challenges.
• Integrated ESD Protection: The device includes integrated electrostatic discharge (ESD) protection, safeguarding the transistor against unexpected voltage spikes and enhancing its durability and reliability.

Robust and Reliable Design

The MW4IC2230GMBR1 is manufactured using NXP's advanced LDMOS technology, which is known for its robustness and ability to withstand severe load mismatch conditions. This technology ensures that the transistor delivers consistent performance, even in the harshest environments.

Applications

Designed to address a wide range of RF power needs, the MW4IC2230GMBR1 is ideal for use in:

• Cellular base station transceivers for 3G, 4G LTE, and other wireless communication systems
• RF energy applications, including industrial heating and plasma generation
• ISM band applications, such as medical diagnostics and treatments, RFID systems, and other scientific equipment

With the MW4IC2230GMBR1, NXP continues to drive innovation in RF power technology, offering a transistor that combines high performance, efficiency, and reliability for next-generation wireless infrastructure solutions.
