Products specifications

Category Development Boards, Kits, Programmers - Evaluation and Demonstration Boards and Kits
Mfr Analog Devices Inc./Maxim Integrated
Package Box
Type Power Management
Function Gate Driver
Utilized IC / Part MAX22702
Primary Attributes Isolated
Supplied Contents Board(s)
Base Product Number MAX22702
Standard Package 1
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1348474-MAX22702EVKIT#
Ultra Librarian 3D Model Ultra Librarian MAX22702EVKIT# CAD Model

Description

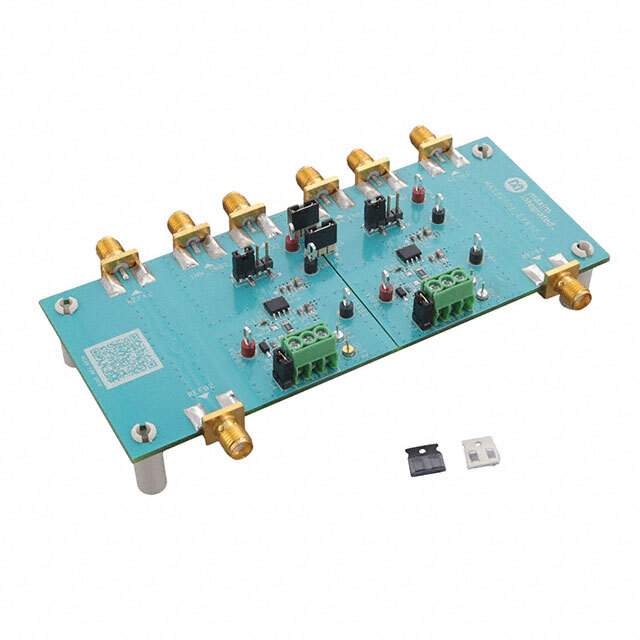

MAX22702EVKIT# Evaluation Kit from Maxim Integrated

The MAX22702EVKIT# is a comprehensive evaluation kit designed to demonstrate the capabilities of the MAX22702, a high-performance, isolated gate driver from Maxim Integrated. This evaluation kit is an essential tool for engineers and designers looking to explore the features and benefits of the MAX22702 for their power conversion and motor control applications.

The MAX22702 is an advanced isolated gate driver that offers a wide range of features designed to drive N-channel MOSFETs or IGBTs. It provides reinforced galvanic isolation between the input and output, ensuring safe operation in high-voltage environments. The device operates with an input voltage range of 3V to 5.5V, making it compatible with various logic levels.

The evaluation kit includes the evaluation board for the MAX22702, which comes fully assembled and tested. It facilitates easy access to all the critical pins and features of the gate driver, allowing for thorough testing and experimentation. The board is designed with connectors and jumpers for quick configuration and measurement of parameters such as propagation delay, pulse width distortion, and driver strength.

One of the standout features of the MAX22702 is its high CMTI (Common-Mode Transient Immunity) performance, which enhances system reliability by minimizing the risk of erroneous gate driver operation in noisy electrical environments. Additionally, the device includes UVLO (Under Voltage Lock Out) protection on both the input and output sides, ensuring the gate driver operates only when supply voltages are within specified limits.

The MAX22702EVKIT# also comes with comprehensive documentation, including a detailed user guide that provides setup instructions, a schematic diagram, bill of materials, and layout files. This information is invaluable for users who wish to customize the evaluation board or integrate the MAX22702 into their own designs.

In summary, the MAX22702EVKIT# from Maxim Integrated is a versatile and feature-rich evaluation kit that offers engineers a practical and efficient way to assess the performance of the MAX22702 isolated gate driver in real-world conditions. With its robust design and extensive documentation, the kit is an ideal starting point for developing advanced power management solutions.
