Products specifications

Categories Integrated Circuits
Manufacturer Maxim Integrated
Packaging Reel - TR
Status Active
Translator Type Voltage Level
Channel Type Bidirectional
Number of Circuits 1
Channels per Circuit 4
Voltage - VCCA 1.2V to 5.5V
Voltage - VCCB 1.65V to 5.5V
Output Type Open Drain, Tri-State
Data Rate 16Mbps
Temperature Range - Operating -40°C to 85°C (TA)
Features Power Supply Decoupling, Thermal-Shutdown Protection
Mounting SMD (SMT)
Case / Package 12-UCSP
Win Source Part Number 210919-MAX3378EEBC+
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MAX3378EEBC+ CAD Model

Description

Maxim Integrated MAX3378EEBC+ Level Translator

The MAX3378EEBC+ is a high-performance, low-power level translator from Maxim Integrated, designed for bidirectional voltage-level translation. It is an ideal solution for applications requiring the interfacing of devices operating at different voltage levels within a system. The MAX3378EEBC+ is especially suited for portable and battery-powered devices due to its low power consumption and compact form factor.

Key Features

  • Wide Voltage Range: The device supports 1.2V to 3.6V on the V<sub>CC side and 1.65V to 5.5V on the VL side, providing a versatile interface between low-voltage and higher-voltage components.
  • Auto-Direction Sensing: The MAX3378EEBC+ automatically senses signal direction, eliminating the need for direction control signals and simplifying design.
  • Low Quiescent Current: With a quiescent current of less than 1µA, the device is optimized for power-sensitive applications.
  • High-Speed Operation: It supports push-pull applications with speeds up to 50Mbps, making it suitable for high-speed signal translation.
  • ESD Protection: The device features integrated ESD protection circuits, safeguarding the interface against electrostatic discharge events.
  • Flow-Through Pinout: The flow-through design simplifies PCB layout by allowing for direct traces between connectors and the device.

Applications

  • Mobile Phones and Accessories
  • GPS Systems
  • Portable Media Players
  • Notebook and Tablet Computers
  • Data Communication Systems

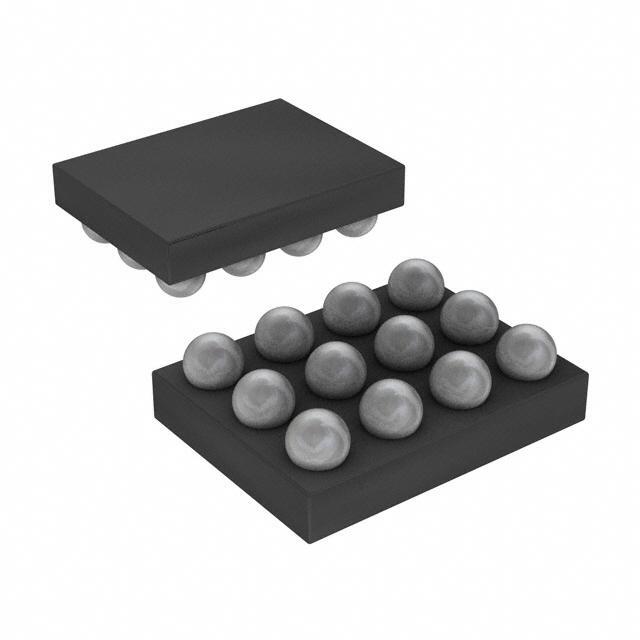

The MAX3378EEBC+ level translator is housed in a 12-bump, chip-scale package (UCSP), which provides a space-saving solution on printed circuit boards. This package, combined with the device's low-power operation and high-speed capabilities, makes it an excellent choice for modern electronic designs that require efficient and reliable level translation between different logic levels.

Whether you are developing a consumer electronics device or a complex data communication system, the MAX3378EEBC+ from Maxim Integrated offers a straightforward and efficient solution for voltage level translation, ensuring compatibility across various components and extending the usability of your electronic designs.
