The MAX3747AEUB+TC99 from Maxim Integrated is a state-of-the-art transimpedance amplifier (TIA) designed for optical networking applications. This high-speed, low-power TIA is optimized for use in 10Gbps systems, making it an ideal choice for designers working on high-performance fiber optic receivers.

Key Features:

• High Bandwidth: The MAX3747AEUB+TC99 is engineered to provide a bandwidth that accommodates data rates up to 10Gbps, ensuring that it can handle the high-speed requirements of modern optical communication systems.
• Low Power Consumption: Despite its high performance, this TIA maintains low power consumption, which is crucial for reducing system heat and improving reliability in dense networking equipment.
• Automatic Gain Control (AGC): With built-in AGC, the MAX3747AEUB+TC99 maintains a consistent output amplitude over a wide range of input power levels, simplifying design and improving performance.
• Signal Detect Output: The device includes an integrated signal detect feature that provides a logic output indicating the presence of an optical signal, which is essential for power-saving and system management functions.

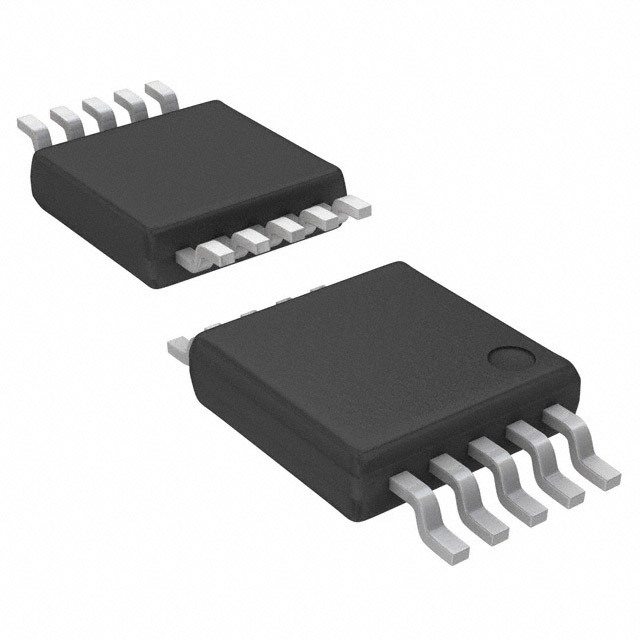

• Compact Package: Offered in a small, 10-pin µMAX package, the MAX3747AEUB+TC99 saves precious board space, which is a critical advantage in the design of compact optical modules and networking equipment.

Applications:

The MAX3747AEUB+TC99 is ideally suited for a variety of applications within the optical communications field, including:

• 10 Gigabit Ethernet (10GbE) transceivers
• Fiber Channel transceivers operating at 8.5Gbps
• SFP+ and XFP modules
• SONET/SDH receivers with rates up to OC-192/STM-64

Technical Specifications:

The technical specifications of the MAX3747AEUB+TC99 include a transimpedance gain of 4900Ω, a single 3.3V power supply, and an operating temperature range of -40°C to +85°C. The device also features a differential output that can directly drive a limiting amplifier or a post-amplifier for further signal processing.

With its combination of high-speed performance, low power consumption, and compact form factor, the MAX3747AEUB+TC99 from Maxim Integrated is an exceptional choice for designers looking to create efficient and high-performing optical communication systems.
