The MAX706MJA is a precision voltage supervisor IC designed and manufactured by Maxim Integrated, a company renowned for its high-quality and reliable integrated circuits. This device is specifically engineered to monitor power supplies in microprocessor and digital systems, providing a significant layer of protection by ensuring that the system voltage remains within specified thresholds.

Key Features

• Voltage Monitoring: The MAX706MJA offers accurate monitoring of power supply voltages, ensuring that the system operates reliably within its voltage parameters.
• Reset Output: It features an active-low reset output that remains asserted until the supply voltage reaches a stable condition for a specified period, thus preventing system operation during uncertain power conditions.
• Manual Reset: A manual reset input allows for an external trigger to initiate a system reset, providing additional control and diagnostic capabilities.
• Watchdog Timer: The integrated watchdog timer serves as an additional safeguard, monitoring system activity and initiating a system reset in the event of a software fault or other malfunction.
• Low Power Consumption: Designed with power efficiency in mind, the MAX706MJA operates with minimal power consumption, making it suitable for battery-operated devices.
• Wide Operating Temperature Range: This IC is capable of operating over a broad temperature range, ensuring reliability in various environmental conditions.

Applications

The MAX706MJA is versatile and can be used in a variety of applications where voltage monitoring and system reliability are critical. It is commonly found in:

• Computers and Servers
• Embedded Systems
• Portable/Battery-Powered Devices
• Communication Systems
• Industrial Equipment

Technical Specifications

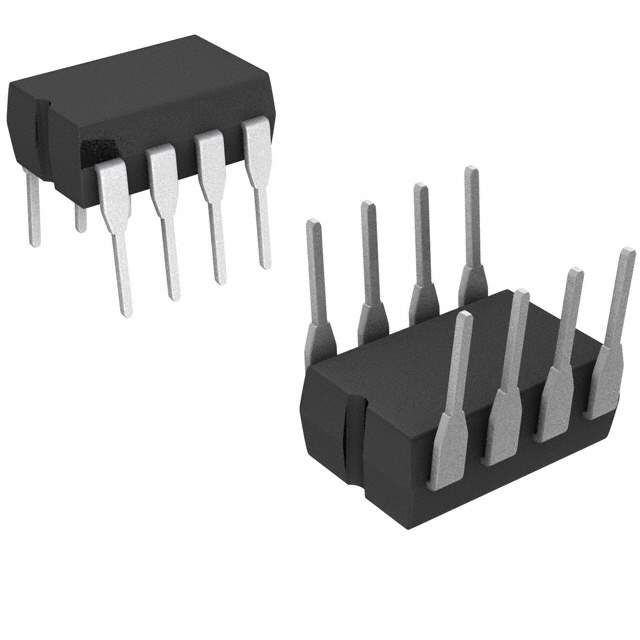

The MAX706MJA comes in a reliable 8-pin CERDIP package and is designed to operate from a single +4.5V to +5.5V supply voltage. It features a factory-trimmed reset threshold voltage and a reset timeout period that ensures system stability upon power-up or during operation.

For detailed specifications, application notes, and additional resources, customers are encouraged to visit the Maxim Integrated official website or contact their local Maxim Integrated sales office.
