Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr Analog Devices Inc./Maxim Integrated
Package Box
Type Power Management
Function Battery Charger
Embedded No
Utilized IC / Part MAX77650
Supplied Contents Board(s)
Secondary Attributes Graphical User Interface, I2C Interface
Base Product Number MAX77650
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 1
Win Source Part Number 1075754-MAX77650EVKIT#
Ultra Librarian 3D Model Ultra Librarian MAX77650EVKIT# CAD Model

Description

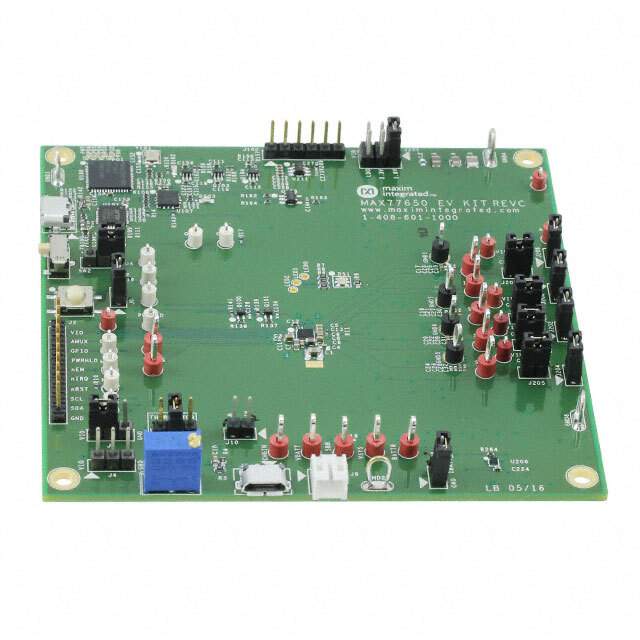

The MAX77650EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed to simplify the testing and prototyping of the MAX77650 ultra-low power PMIC. This PMIC is tailored for applications such as wearable devices, fitness monitors, and IoT devices, where power efficiency and compact size are critical.

Key Features

  • Integrated Components: The kit features the MAX77650 PMIC, which integrates a single-inductor multiple-output (SIMO) buck-boost regulator, a linear charger, and additional power management functionalities.
  • Flexible Power Supply: The SIMO regulator supports three buck-boost channels with programmable voltage outputs, providing a versatile power supply solution for various components of your design.
  • Configurable Settings: Users can configure the PMIC settings through I2C interface, allowing for precise control over voltage levels, current limits, and other parameters.
  • Onboard Connectors: The evaluation kit comes with a USB interface for power and communication, making it easy to interface with a PC for real-time configuration and monitoring.
  • LED Indicators: Built-in LEDs indicate power status and battery charging states, offering visual feedback during the evaluation process.

Design and Development Support

The evaluation kit includes a pre-mounted MAX77650 PMIC on a compact, user-friendly board. It is accompanied by comprehensive documentation, including schematics, layout files, and application notes. The kit also supports Maxim Integrated's software tools for device configuration and performance analysis, streamlining the development process for engineers.

Applications

With its low power consumption and small footprint, the MAX77650EVKIT# is ideal for developing power management solutions for:

  • Wearable Devices
  • Fitness and Health Monitoring Devices
  • Portable Electronics
  • Smart Home and IoT Devices

Overall, the MAX77650EVKIT# from Maxim Integrated is an essential tool for designers looking to harness the power and flexibility of the MAX77650 PMIC in their next-generation portable and wearable applications.
