Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Analog Devices Inc./Maxim Integrated
Package Box
Main Purpose DC/DC, Step Down
Outputs and Type 4, Non-Isolated
Voltage - Output 0.25V ~ 1.525V
Current - Output 20A
Voltage - Input 2.5V ~ 5.5V
Regulator Topology Buck
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part MAX77812
Base Product Number MAX77812
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Standard Package 1
Win Source Part Number 1004776-MAX77812EVKIT#
Ultra Librarian 3D Model Ultra Librarian MAX77812EVKIT# CAD Model

Description

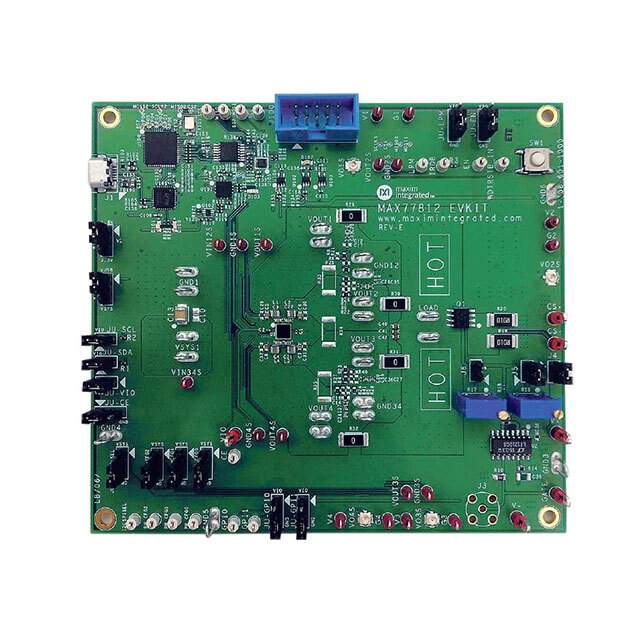

MAX77812EVKIT# Evaluation Kit by Maxim Integrated

The MAX77812EVKIT# from Maxim Integrated is a versatile evaluation kit designed to demonstrate the capabilities of the MAX77812 voltage regulator. This high-efficiency, quad-phase, buck converter is optimized for supplying multi-core processors in applications that require a highly efficient and compact power delivery solution. The evaluation kit is an essential tool for engineers and developers who need to assess the performance of the MAX77812 in their designs.

Key Features

  • Quad-Phase Buck Converter: The heart of the kit is the MAX77812 IC, which provides four buck-converter phases that can be configured and scaled to meet the specific power requirements of the target application.
  • Programmable Voltage Output: The kit allows for easy adjustment of the output voltage, enabling users to tailor the power supply to the needs of their specific circuit.
  • High Efficiency: Designed for efficiency, the MAX77812 helps reduce power loss and improve overall system performance, making it ideal for battery-powered and energy-sensitive applications.
  • Compact Design: The small footprint of the MAX77812 makes the EVKIT suitable for space-constrained applications, without compromising on power or efficiency.
  • GUI Support: The evaluation kit comes with graphical user interface (GUI) software that provides an intuitive platform for device configuration and monitoring, simplifying the evaluation process.

Applications

The MAX77812EVKIT# is particularly suitable for powering multi-core processors in a range of applications, including:

  • Smartphones and Tablets
  • Portable and Wearable Devices
  • Networking and Telecommunications Equipment
  • Gaming Consoles
  • Other Embedded Systems Requiring Efficient Power Regulation

Package Contents

The evaluation kit includes the MAX77812 evaluation board, a USB cable for connectivity, and documentation to assist with setup and operation. To get started, users will need to download the GUI software from Maxim Integrated's website, which provides a user-friendly interface for device programming and testing.

With its comprehensive features and user-friendly tools, the MAX77812EVKIT# is a powerful asset for designers looking to optimize power management in their next-generation electronic products.
