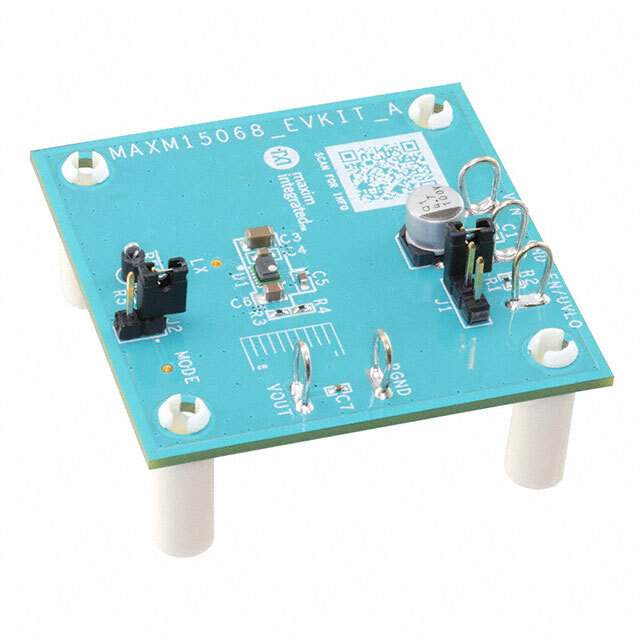

MAXM15068EVKIT# Evaluation Kit by Maxim Integrated

The MAXM15068EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed to demonstrate the capabilities of the MAXM15068 compact, high-efficiency, high-voltage, synchronous step-down DC-DC module. This evaluation kit is an essential tool for engineers and designers to explore the features, performance, and versatility of the MAXM15068 module in their power supply applications.

Key Features of the MAXM15068EVKIT#

• Integrated Solution: The MAXM15068 module incorporates a controller, MOSFETs, an inductor, and compensation components within a compact system-in-package (SiP) design, allowing for a simplified layout and reduced external component count.
• Wide Input Voltage Range: The kit supports a broad input voltage range from 4.5V to 42V, making it suitable for a variety of applications, including industrial, automotive, and telecommunications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.9V to 0.9 x VIN, providing flexibility for different design requirements.
• High Efficiency: The MAXM15068 module is optimized for high efficiency, which helps in reducing power loss and improving system performance.
• Thermal Management: The kit is designed with thermal performance in mind, featuring an exposed pad for enhanced heat dissipation.
• Easy-to-use: The evaluation kit comes with convenient test points and jumper options for easy measurement and configuration.
• Protection Features: The module includes over-current protection, over-voltage protection, and thermal shutdown to ensure safe operation under various conditions.

Applications

The MAXM15068EVKIT# is suited for testing the MAXM15068 module in applications such as:

• Point-of-Load (POL) power supplies
• Industrial control and automation
• Automotive infotainment and navigation systems
• Networking and telecommunications equipment
• Portable and battery-powered devices

With its user-friendly design, the MAXM15068EVKIT# enables designers to rapidly prototype and test their power supply solutions, accelerating the development process and time-to-market for their products. Whether you're working on a new design or optimizing an existing one, the MAXM15068EVKIT# from Maxim Integrated provides a convenient and efficient platform for evaluating the performance of the MAXM15068 high-voltage, synchronous step-down DC-DC module.
